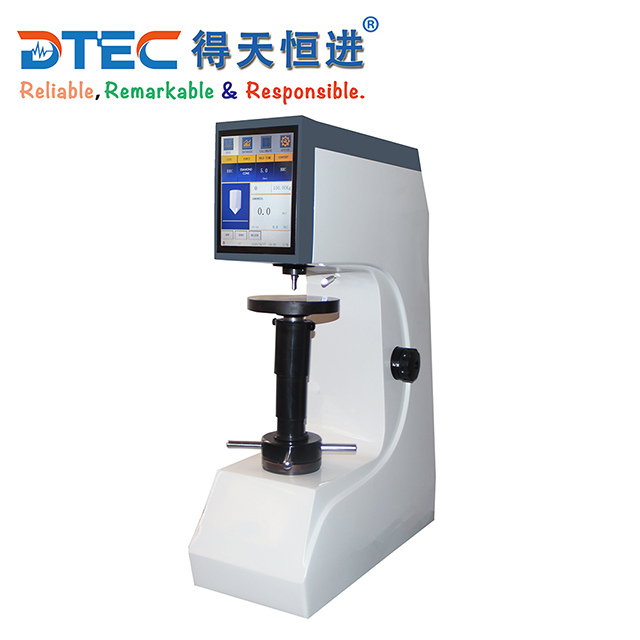

Product : Touch Screen Rockwell Hardness Tester
Model : DHR-150DT
Country of Origin : CHINA
Brand : DTEC
Quality Certified : GB/T230.1/2,ISO 6508-2,ASTM E18.
Delivery Time : 3 days
Packing Weight : 95KG
Dimension : 63x50x86cm(LxWxH)

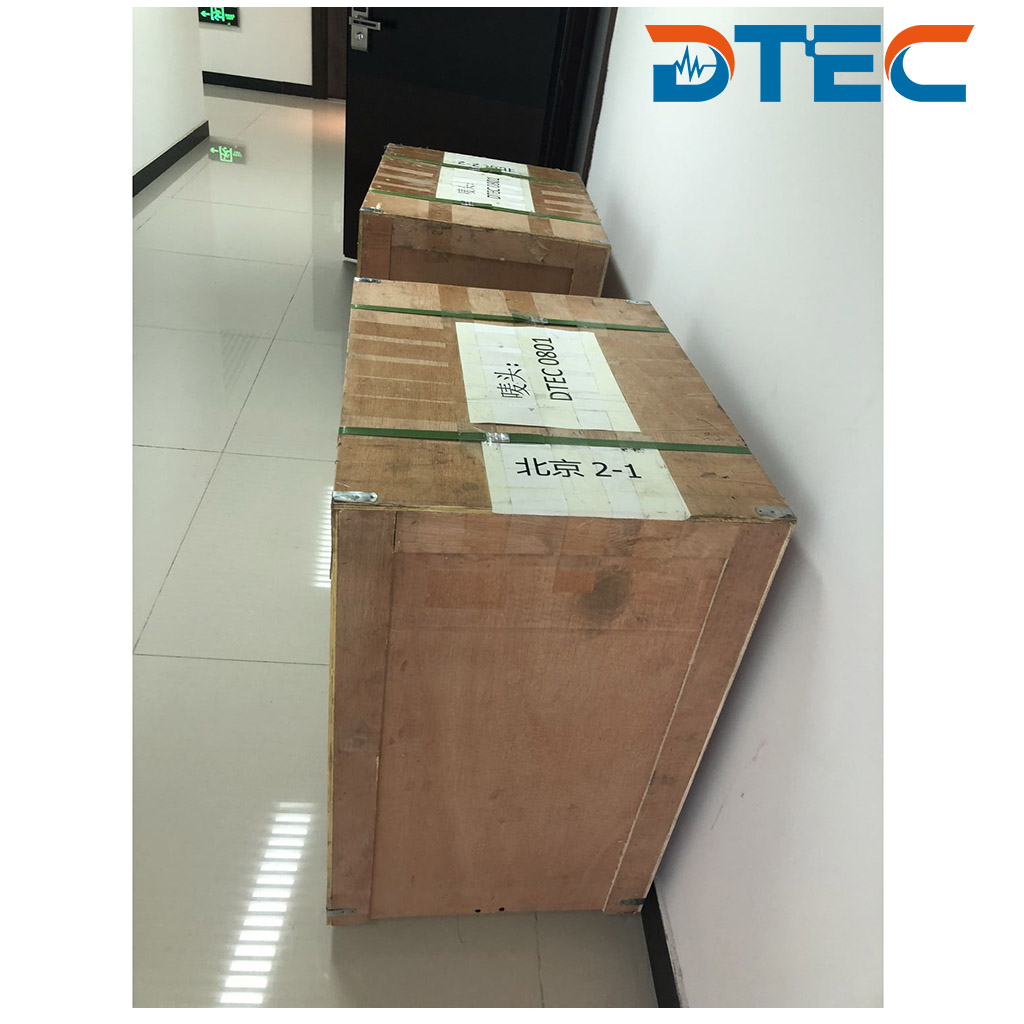

Package Type : Maker's Standard Export Wooden Box
Courier : DHL/TNT/FedEx/UPS/EMS,Shipping Agent
Payment Term : TT100%/Private Bank Account/Credit Card/Paypal/Western Union
 |
- Product Intro
- Feature
- Specification
- Packing List
DTEC company’s Rockwell hardness tester covers four major types: Rockwell, Superficial Rockwell, Plastic Rockwell and Dual/full Rockwell.
Rockwell:Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy, bearing steel, carburized steel sheet, etc.
Superficial Rockwell:Small and slice workpiece;Surface hardened steel, copper, aluminum alloy sheet, hard alloy steel, zinc layers, chrome layers, tin layers, surface heat treating and chemical treating materials, etc.
Plastic Rockwell:Hard plastic ,hard rubber, composite material,friction material,soft metal such as aluminium,copper,tin,soft steel etc. and nonmetal soft material, synthetic resin etc.
Dual/full Rockwell:All testing material applicable for rockwell,superficial rockwell and plastic rockwell.
Newly designed model, with 8-inch touch screen, displaying detail test information,which is easy to read;
Freely set qualified range,overrun alarm;edit specimen name and other information;
Electronic loading with weight, equip with high precision sensor,presenting high test accuracy;
Automatic correction of high, medium and low hardness values;
Automatically store,process and print out test results ,with conversion of various hardness scales;
Blue tooth wireless printer, RS232 interface, optional USB flash disk automatically stored;
Quality certified with GB/T230.1/.2 National Standard,ISO 6508-2,ASTM E18;
One year guarantee, after-sale training by video offered or online communication, lifelong technical support;
The machine can be customized white or blue colors,post on display with buyer’s logo;
DHR-150DT(max.specimen height 400mm) is suitable for larger size of samples.
|
Model
|
DHR-150A
|
DHR-150A-B
|
DHR-150D
|
DHR-150DTE
|
DHR-150DT
|
|||
|
Operating Mode |
Manual
|
Manual
|
Digital
|
Digital
|
Digital
|
|||
|
Hardness Value Reading |
Dial
|
Dial
|
Large LCD |
Colorful Touch Screen |
Colorful Touch Screen |
|||
|
Loading/Unloading Mode |
Manual
|
Manual
|
Auto
|
Auto
|
Auto
|
|||
|
Initial Test Force |
10kgf (98.07N) |
|||||||
|
Tolerance
|
±2.0%
|
±2.0%
|
<1.0%
|
±2.0%
|
<0.5%
|
|||
|
Total Test Force |
60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N) |
|||||||
|
Load Value Error |
±1.0%
|
±1.0%
|
<1.0%
|
±1.0%
|
<0.5%
|
|||
|
Value Resolution |
0.5HR
|
0.5HR
|
0.1HR
|
0.1HR
|
0.1HR
|
|||
|
Dwell Time |
--
|
--
|
0-99s adjustable |
0-60s adjustable |
0-60s adjustable |
|||
|
Rockwell Scales |
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRR
|
|||||||
|
Testing Range |
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
|||||||
|
Dial Graduation Range |
C: 0-100 B: 30-130 |
--
|
--
|
--
|
||||
|
Handle Type |
Dual
|
Single
|
--
|
--
|
--
|
|||
|
Conversion Scales |
--
|
--
|
Superficial Rockwell, Brinell, Vickers. |
|||||
|
Data Output |
NA
|
NA
|
Blue Tooth mini printer,RS232 port |
|||||
|
Carried Standard |
GB/T230.1/.2, ISO 6508-2, ASTM E18 |
|||||||
|
Language
|
English (Customized: Russian, Turkish, Spanish, Italian, etc.) |
|||||||
|
Machine Color |
White, Blue (can be customized other colors) |
|||||||
|
Max. Specimen Height |
170mm
|
200mm
|
200mm
|
230mm (All models can be customized to 500mm) |
||||
|
Distance of indenter center to machine wall |
135mm
|
165
|
135
|
170
|
135
|
|||
|
Max. Diameter of Platform |
150mm(can be customized to bigger size) |
|||||||
|
Power Supply |
--
|
--
|
AC220±5% 50-60Hz
|
|||||
|
Packing Dimension (LxWxH) |
65x40x81cm
|
63x50x86cm
|
||||||
|
Packing Gross Weight |
85KG
|
65KG
|
95KG
|
90KG
|
95KG
|
|||
|
ITEMS
|
QTY.
|
Notes
|
|
Rockwell Hardness Tester |
1Set
|
|
|
Large testing table |
1
|
|
|
Small testing table |
1
|
|
|
V shaped testing table |
1
|
|
|
120°HRC Diamond Rockwell Indenter
|
1
|
|
|
Φ1.588mm HRB ball Indenter
|
1
|
|
|
Φ1.588mm ball
|
5
|
|
|
80-88HRA Rockwell standard block |
1
|
|
|
85-95HRB Rockwell standard block |
1
|
|
|
60-70HRC Rockwell standard block |
1
|
|
|
35-55HRC Rockwell standard block |
1
|
|
|
20-30HRC Rockwell standard block |
1
|
|
|
75mm Large screw driver |
1
|
|
|
65mm Small screw driver |
1
|
|
|

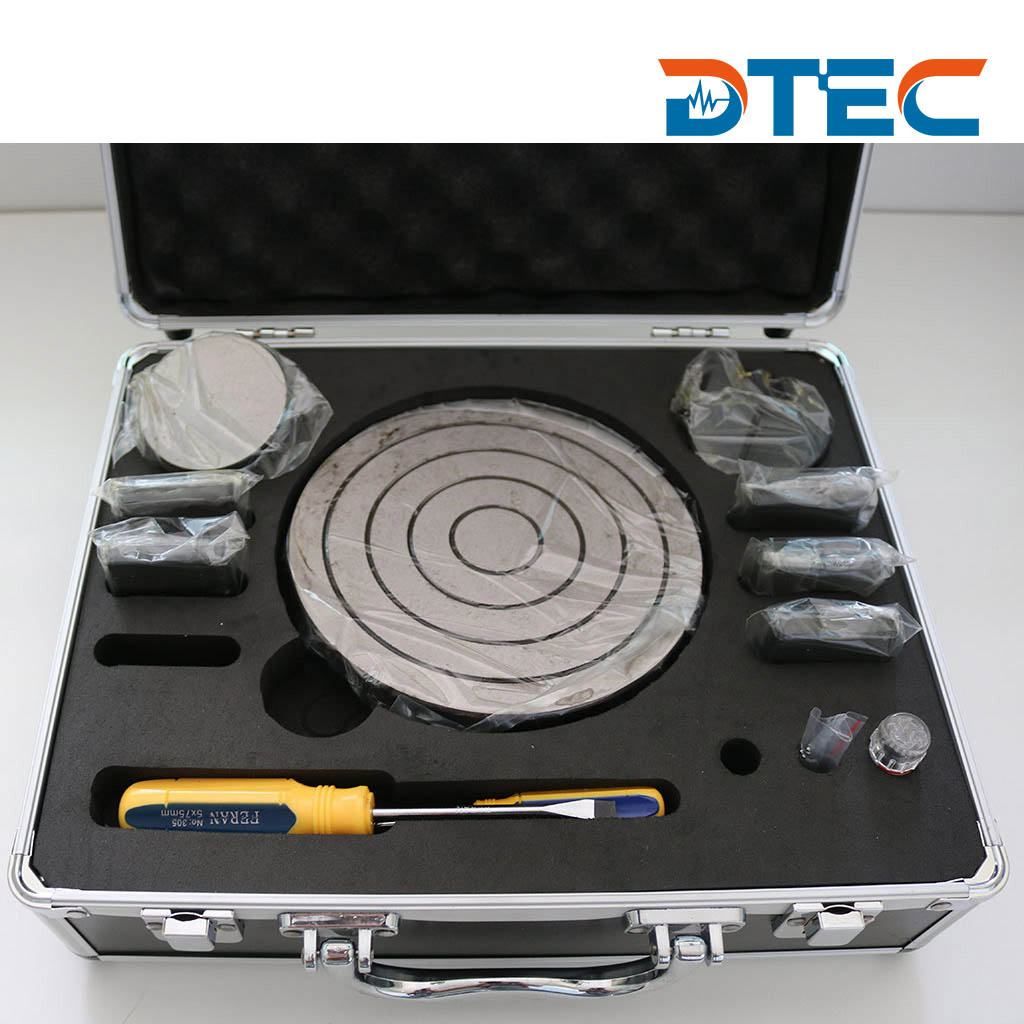

Accessory case |
1
|
|
|
Dust shield
|
1
|
|
|
User’s manual book |
1
|
|
|
Certificate
|
1
|
|
|
Packing list
|
1
|
|
|
10A 250V Power cable |
1
|
Only for DHR-150D/DT/DTE |
|
Bluetooth wireless mini printer |
1
|
|
|
Horizontal adjusting screw |
1
|
|
