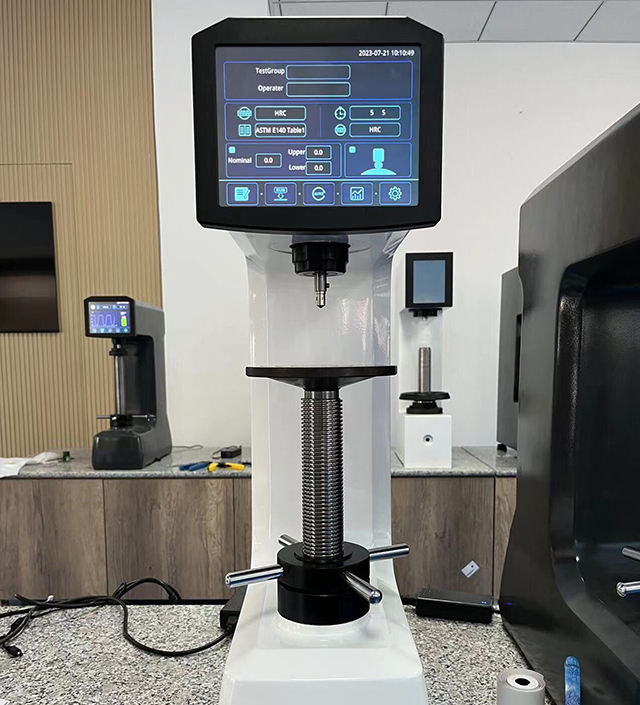

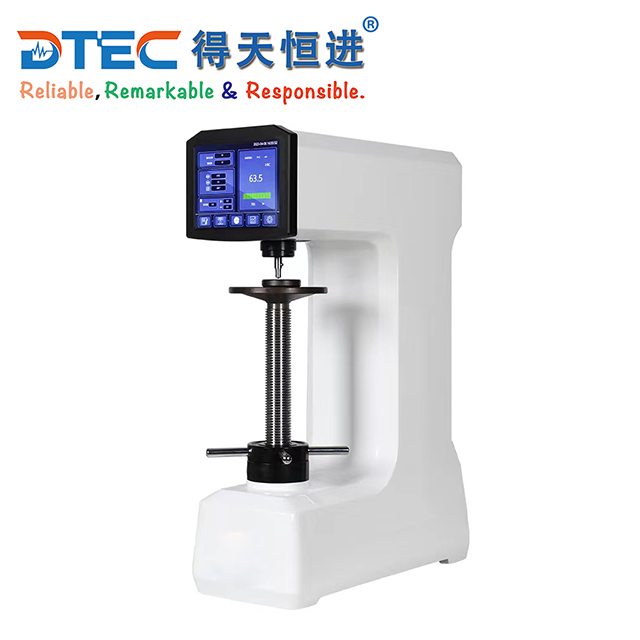

Product : Touch Screen Digital Rockwell Hardness Tester
Model : DHR-150DTE
Country of Origin : CHINA
Brand : DTEC
Quality Certified : GB/T230.1/.2, ISO6508-2,ASTM E18.
Delivery Time : 3 days
Packing Weight : 90KG
Dimension : 63x50x86cm
Package Type : Maker's Standard Export Wooden Box
Courier : DHL/TNT/FedEx/UPS/EMS,Shipping Agent
Payment Term : TT100%/Private Bank Account/Credit Card/Paypal/Western Union
 |
- Product Intro
- Feature
- Specification
- Packing List
- 1.Good reliability, excellent operation and easy watching;
- 2. Electronic driven, simple structure, no weight using.
- 3. Can connect PC to output
- 4. Conversion different hardness scales;
Suitable for quenching, quenching and tempering, annealing, chilled castings, malleable castings, hardness determination of hard alloy steel, aluminum alloy, copper alloy, bearing steel, etc. It is also suitable for surface hardened steel, material surface heat treatment and chemical treatment layer, copper, aluminum alloy, thin plate, galvanized, chrome plated, tin plated material, bearing steel, chilled castings, etc.
- Electronic-driven instead of weight -driven, it can test the Rockwell and the Superficial Rockwell full scale;

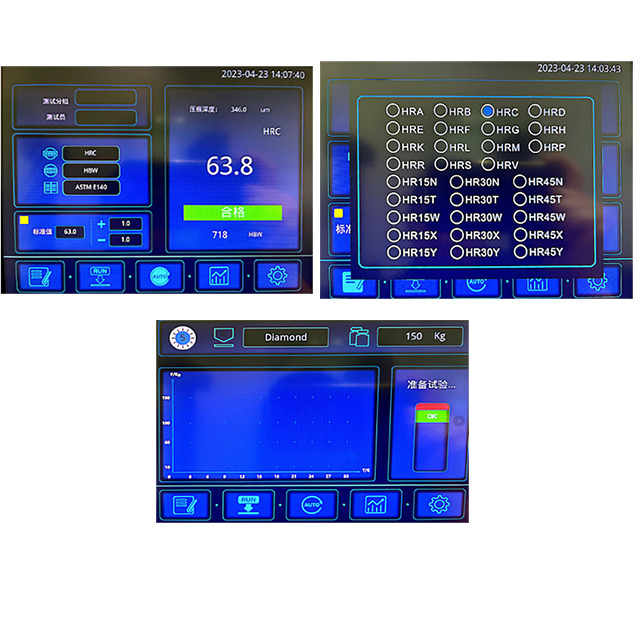

- Touch screen simple interface, humanized operation interface;
- Machine main body overall pouring, deformation of the frame is small, measuring value is stable and reliable;
- Powerful data processing function, can test 15 kinds of Rockwell hardness scales, and can convert HR, HB, HV and other hardness standards;
- Independently stores 500 sets data, and data will be saved when power is turned off;
- Initial load holding time and loading time can be set freely;
- The hardness value can be corrected according to the size of the cylinder;
- With hardness value correction function, each scale can be corrected;
- Machine accuracy is in line with GB/T230.1/.2, ISO6508-2 and American standard ASTM E18.
|
Model
|
DHR-150A
|
DHR-150A-B
|
DHR-150D
|
DHR-150DTE
|
DHR-150DT
|
|||
|
Operating Mode |
Manual
|
Manual
|
Digital
|
Digital
|
Digital
|
|||
|
Hardness Value Reading |
Dial
|
Dial
|
Large LCD |
Colorful Touch Screen |
Colorful Touch Screen |
|||
|
Loading/Unloading Mode |
Manual
|
Manual
|
Auto
|
Auto
|
Auto
|
|||
|
Initial Test Force |
10kgf (98.07N) |
|||||||
|
Tolerance
|
±2.0%
|
±2.0%
|
<1.0%
|
±2.0%
|
<0.5%
|
|||
|
Total Test Force |
60kgf(588.4N), 100kgf(980.7N), 150kgf(1471N) |
|||||||
|
Load Value Error |
±1.0%
|
±1.0%
|
<1.0%
|
±1.0%
|
<0.5%
|
|||
|
Value Resolution |
0.5HR
|
0.5HR
|
0.1HR
|
0.1HR
|
0.1HR
|
|||
|
Dwell Time |
--
|
--
|
0-99s adjustable |
0-60s adjustable |
0-60s adjustable |
|||
|
Rockwell Scales |
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRR
|
|||||||
|
Testing Range |
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 |
|||||||
|
Dial Graduation Range |
C: 0-100 B: 30-130 |
--
|
--
|
--
|
||||
|
Handle Type |
Dual
|
Single
|
--
|
--
|
--
|
|||
|
Conversion Scales |
--
|
--
|
Superficial Rockwell, Brinell, Vickers. |
|||||
|
Data Output |
NA
|
NA
|
Blue Tooth mini printer,RS232 port |
|||||
|
Carried Standard |
GB/T230.1/.2, ISO 6508-2, ASTM E18 |
|||||||
|
Language
|
English (Customized: Russian, Turkish, Spanish, Italian, etc.) |
|||||||
|
Machine Color |
White, Blue (can be customized other colors) |
|||||||
|
Max. Specimen Height |
170mm
|
200mm
|
200mm
|
230mm (All models can be customized to 500mm) |
||||
|
Distance of indenter center to machine wall |
135mm
|
165
|
135
|
170
|
135
|
|||
|
Max. Diameter of Platform |
150mm(can be customized to bigger size) |
|||||||
|
Power Supply |
--
|
--
|
AC220±5% 50-60Hz
|
|||||
|
Packing Dimension (LxWxH) |
65x40x81cm
|
63x50x86cm
|
||||||
|
Packing Gross Weight |
85KG
|
65KG
|
95KG
|
90KG
|
95KG
|
|||
|
ITEMS
|
QTY.
|
Notes
|
|
Rockwell Hardness Tester |
1Set
|
|
|
Large testing table |
1
|
|
|
Small testing table |
1
|
|
|
V shaped testing table |
1
|
|
|
120°HRC Diamond Rockwell Indenter
|
1
|
|
|
Φ1.588mm HRB ball Indenter
|
1
|
|
|
Φ1.588mm ball
|
5
|
|
|
80-88HRA Rockwell standard block |
1
|
|
|
85-95HRB Rockwell standard block |
1
|
|
|
60-70HRC Rockwell standard block |
1
|
|
|
35-55HRC Rockwell standard block |
1
|
|
|
20-30HRC Rockwell standard block |
1
|
|
|
75mm Large screw driver |
1
|
|
|
65mm Small screw driver |
1
|
|
|
Accessory case |
1
|
|
|
Dust shield
|
1
|
|
|
User’s manual book |
1
|
|
|
Certificate
|
1
|
|
|
Packing list
|
1
|
|
|
10A 250V Power cable |
1
|
Only for DHR-150D/DT/DTE |
|
Bluetooth wireless mini printer |
1
|
|
|
Horizontal adjusting screw |
1
|
|
