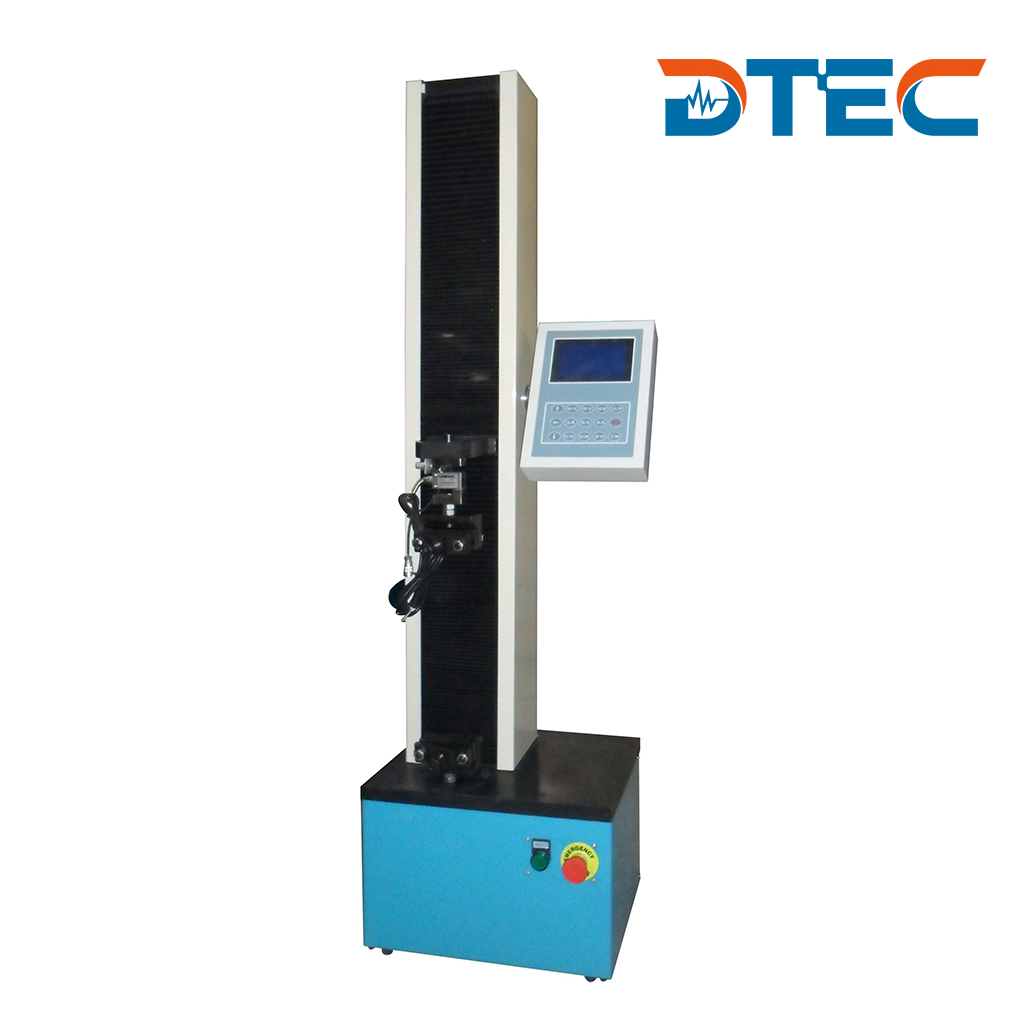

DDW-S Series Digital Display Electronic Universal Testing Machine (Single Arm Type) is equipped with small displayer aside, which the whole operation is processing on, while all testing data and parameter will show on this displayer, it is adjustable in testing speed, and has function of auto stop when the specimen is broken, as well as peak value holding.

Using Scopes:

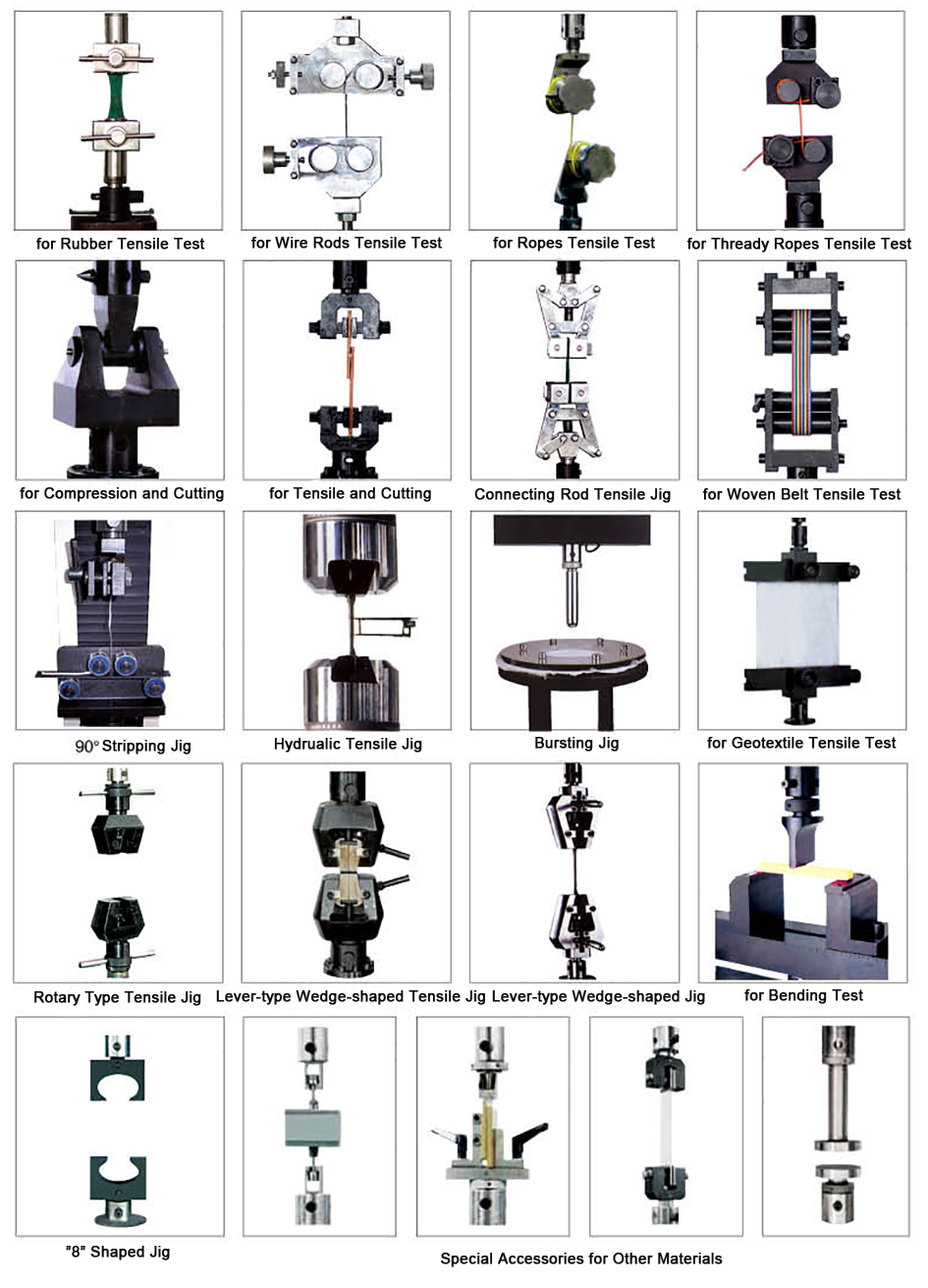

DDW-S Series Digital Display Electronic Universal Testing Machine (Single Arm Type) is applicable for tensile tests of materials with even smaller test force, such as rubber, plastic, textile, waterproofing material, cable, network wire, metal wire, metal rod, metal plate and others. With attaching tools, it can also do compression and bending tests. Due to its quick installment and easy operation, it is also used as laboratory equipment in colleges Quality Testing Organizations.

Equipment’s Main Structure:
Single type equipment adopts desktop-arm as well as double-space structure to achieve tension and compression, the movable beam can be adjusted freely, and it can change testing space size after changing column, screw rod and outer cover. Drive System compose of arc tooth synchronous belt and screw rod, which is smooth operation，high efficiency，low noise and environmental friendly.
