Products > Portable Hardness > Webster Hardness Tester > W-20B Webster Hardness Tester

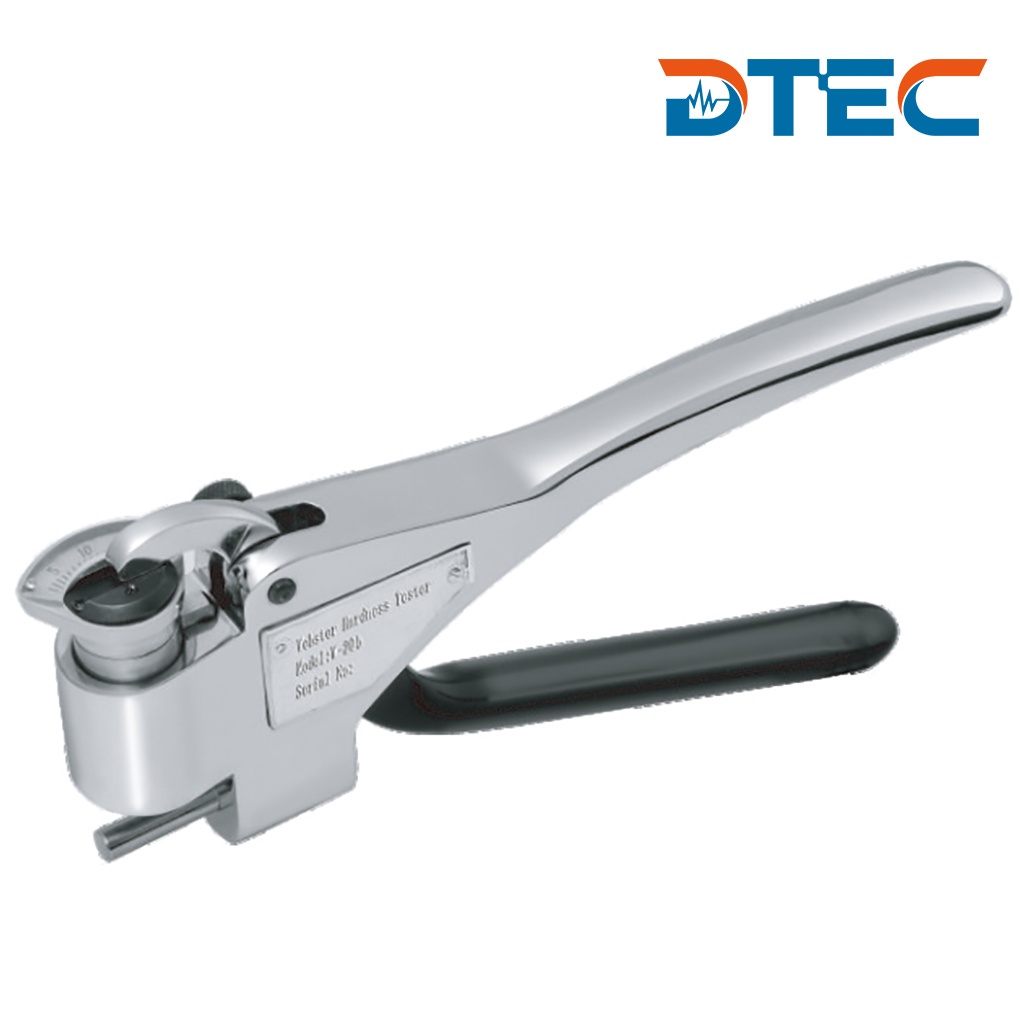

Product : W-20B Webster Hardness Tester

Model : W-20B

Country of Origin : CHINA

Brand : DTEC

Quality Certified : YS/T420-2004,ASTM B647-84(2000)

Delivery Time : 3 days

Packing Weight : 2KG

Dimension : 31x22x10cm(LxWxH)

Package Type : Maker's Standard Export Wooden Case

Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent

Payment Term : TT100%/Private Bank Account/Credit Card/Paypal/Western Union

Enlarge Image

Back

←[Previous Product] [Next Product]→

Product Intro
Feature
Specification
Packing List

Webster Hardness Tester is an instrument that can promptly on-site test the hardness of aluminum alloy material, including section bar,tubes,plates,aluminum parts,and hardness of other soft mental. It is such an instrument convenient in usage, with a simple “clamp” and direct result-reading, that it always receives good feedback of high efficiency and strong stability.
Webster Hardness Tester is the best choice for mechanical testing on aluminum alloy material, it is conform to Chinese nonferrous standard YS/T420-2004 and US standard ASTM B647-84(2000).

Using Scope:
Especially suitable in production site,sales site or construction site for quickly testing on bulk products with non-destructive quality inspection piece by piece.
Besides aluminum alloy material, it is also suitable to test red copper, brass, soft copper etc.

Application:

♦W-20: General Model, suitable for common aluminum materials;

♦W-20A:Suitable for aluminum materials with thickness ≤13mm;

♦W-20B:Suitable for aluminum tube with inner dia.≥6mm;

♦W-B75:Suitable for brass tube, brass strip;

♦W-BB75: Suitable for red copper tube, red copper strip;

♦W-B92:Suitable for soft stainless steel, cold-rolled strip.

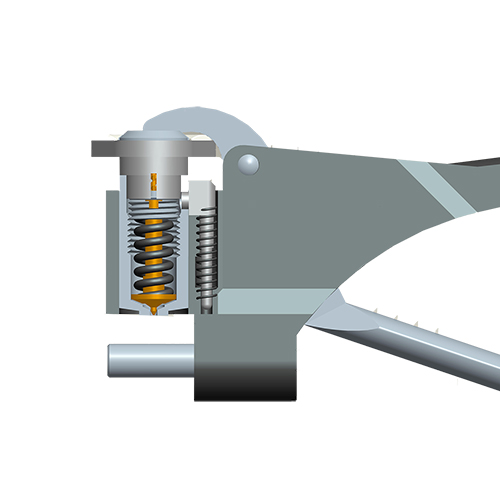

►Indenter: Re-engineerred with advanced material and new production technology manufactured, higher hardness, long service life, good interchangeability;

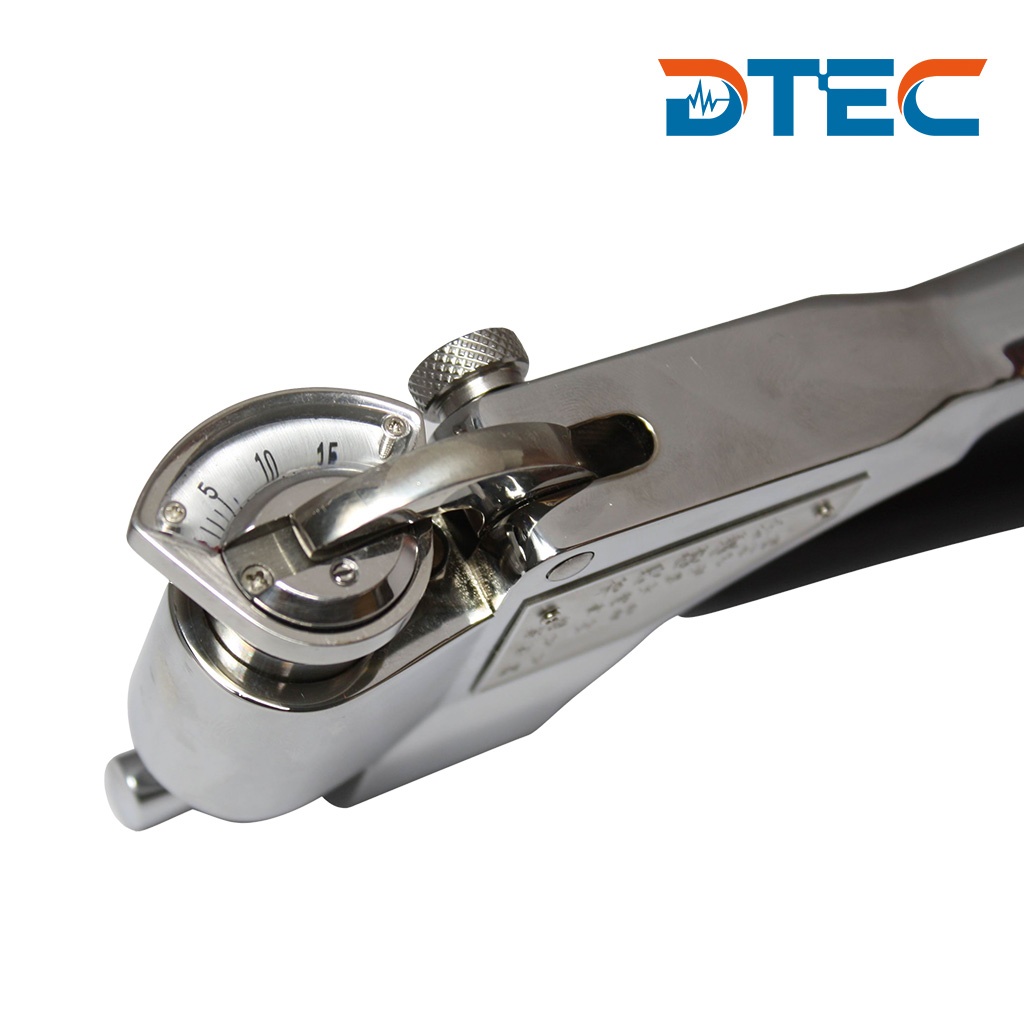

►Indicator Hand: High strength indicator hand, less likely to be bent by long-term using or mis-operation;
►Dial Glass: High strength, high toughness, uneasy to be broken or scratched;
►Handle: Forged aluminum alloy handle with fine anodized finishing, high resistance to abraision and stain;
►Hardness Blocks: Tested by standard Rockwell hardness tester, attached with test report;
►Good Stability: Stable full scale point, stable calibration point, indicator never glides;
►Easy Conversion: Results can be converted to Vickers, Rockwell and Brinell.

Model	W-20B
Testing Range	0 ~ 20 HW (equivalent to 20 ~ 110 HRE,58-131HRV)
Resolution	0.5 HW (5 ~ 17 HW)
Repeatability	0.5 HW (5 ~ 17 HW)
Application	Aluminum Alloy
Suitable Specimen Size	Thickness 0.4-8 Inner Dia. >6mm
Dimension	31x22x10cm(LxWxH)
Packing Weight	2.0KG

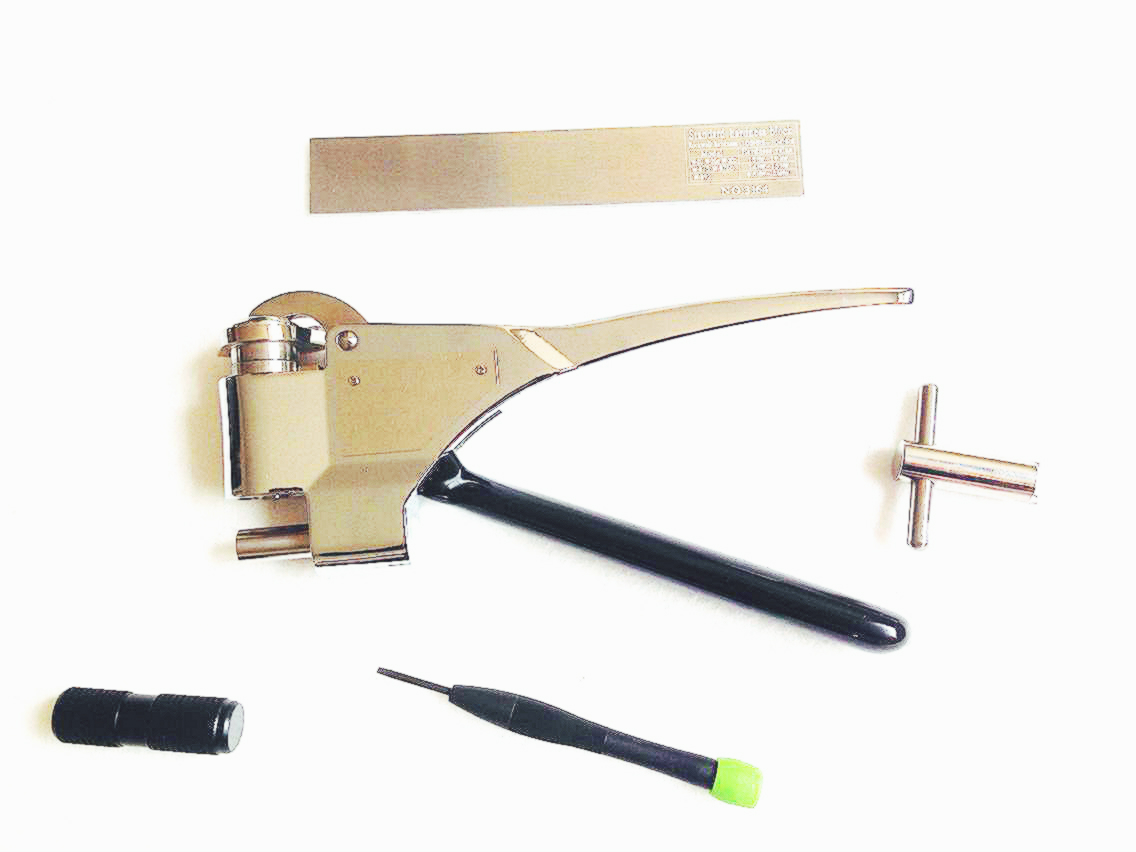

Standard Packing Accessories：

Items	Qty.
Unit Tester	1
Standard Hardness Block	1
Spare Indenter	1
Calibration Wrench	1
Little Screwdriver	1
User’s Manual Book, Quality Certificate, Warranty Card	1 each
Case	1

Optional Accessories:

Items

Indenter

Hardness Block

Dial Glass
