Products > Desktop Hardness > Brinell > Electronic Brinell Hardness Tester

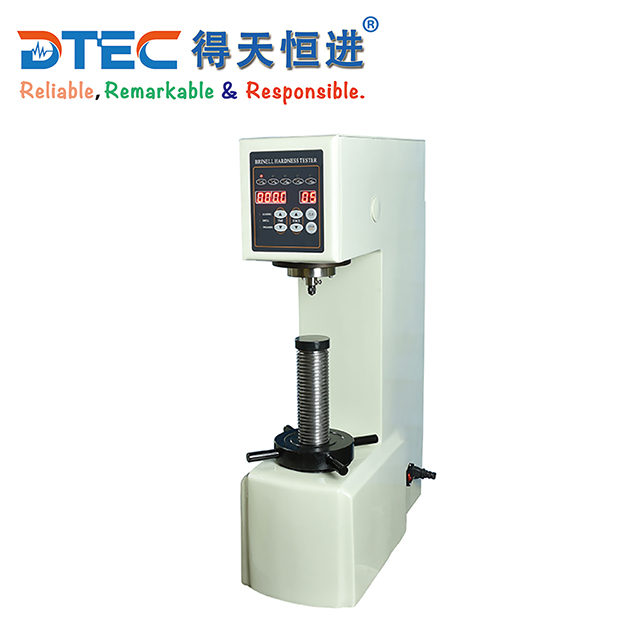

Product : Electronic Brinell Hardness Tester

Model : DHB-3000E

Country of Origin : CHINA

Brand : DTEC

Quality Certified : EN,ISO6506/07,ASTM E-384/10-08, GB/T231.2,JJG150

Delivery Time : 7 working days

Packing Weight : 125KG

Dimension : 72x40x89cm(LxWxH)

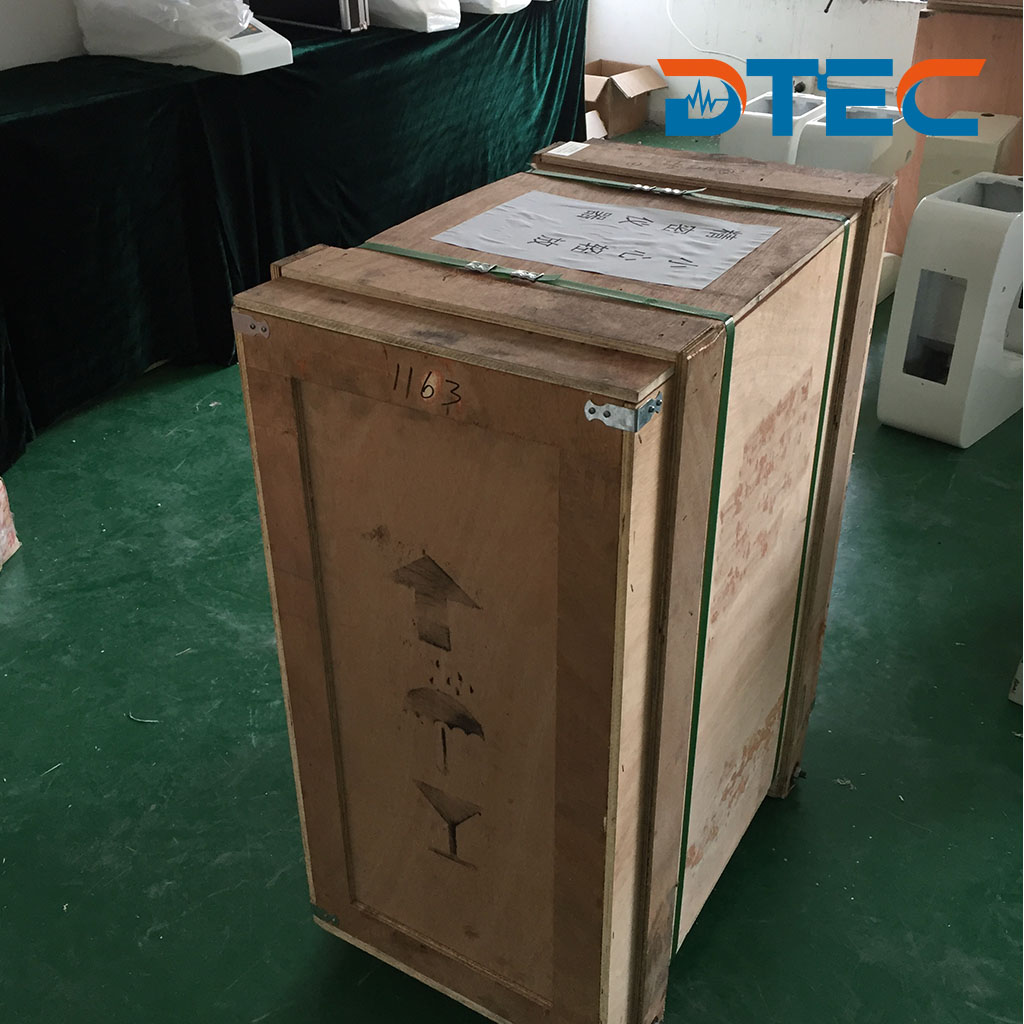

Package Type : Maker's Standard Export Wooden Case

Courier : DHL/TNT/FedEx/UPS/EMS/Shipping Agent

Payment Term : TT100%/Private Bank Account/Credit Card/Paypal/Western Union

Enlarge Image

Back

←[Previous Product]

Product Intro
Feature
Specification
Packing List

DHB-3000E Electrical Brinell Hardness Tester adopts technique of close-loop transducer loading, with electronic control system, which has high level testing force.

Using Scopes:
With high level testing force and deep indentation left, Brinell Hardness Tester is suitable to test on metal with big grain size,such as cast iron,non-ferrous metals and alloys, various annealed material and QT material,especially for soft metals,like aluminum,plumbum,and stannum,it is also used for measuring hardness value of some non-metal materials such as hard plastics and bakelite, etc.

►High repeatability and stability,easy operated and high testing efficiency;
►10 level testing force,suitable for various non-ferrous metals and other soft metals,with high precision;
►International qualified products,qualified with EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2，JJG150

Model	DHB-3000E
Hardness Scales	HBW2.5/62.5 HBW2.5/187.5 HBW5/125 HBW5/750 HBW10/100、 HBW10/1500 HBW10/3000 HBW10/250 HBW10/500 HBW10/1000
Testing Force	62.5kgf(612.9N)100kgf(980.7N)125kgf(1226N)187.5kgf(1839N)250kgf(2452N) 500kgf(4903N)750kgf(7355N)1000kgf(8907N)1500kgf(14710N)3000kgf(29420N)
Specimens Max. Height	230mm
Min. Testing Unit	0.005mm
Dwell Time	0~60s
Testing Range	8~650HBW
Microscope Amplification	20X
Carried Standard	EN, ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2，JJG150
Max.Specimens Depth	160mm
Displaying Mode	Table Check
Power Supply	AC220+5%,50~60Hz
Dimension(cm)	724089cm
Packing Weight	125KG

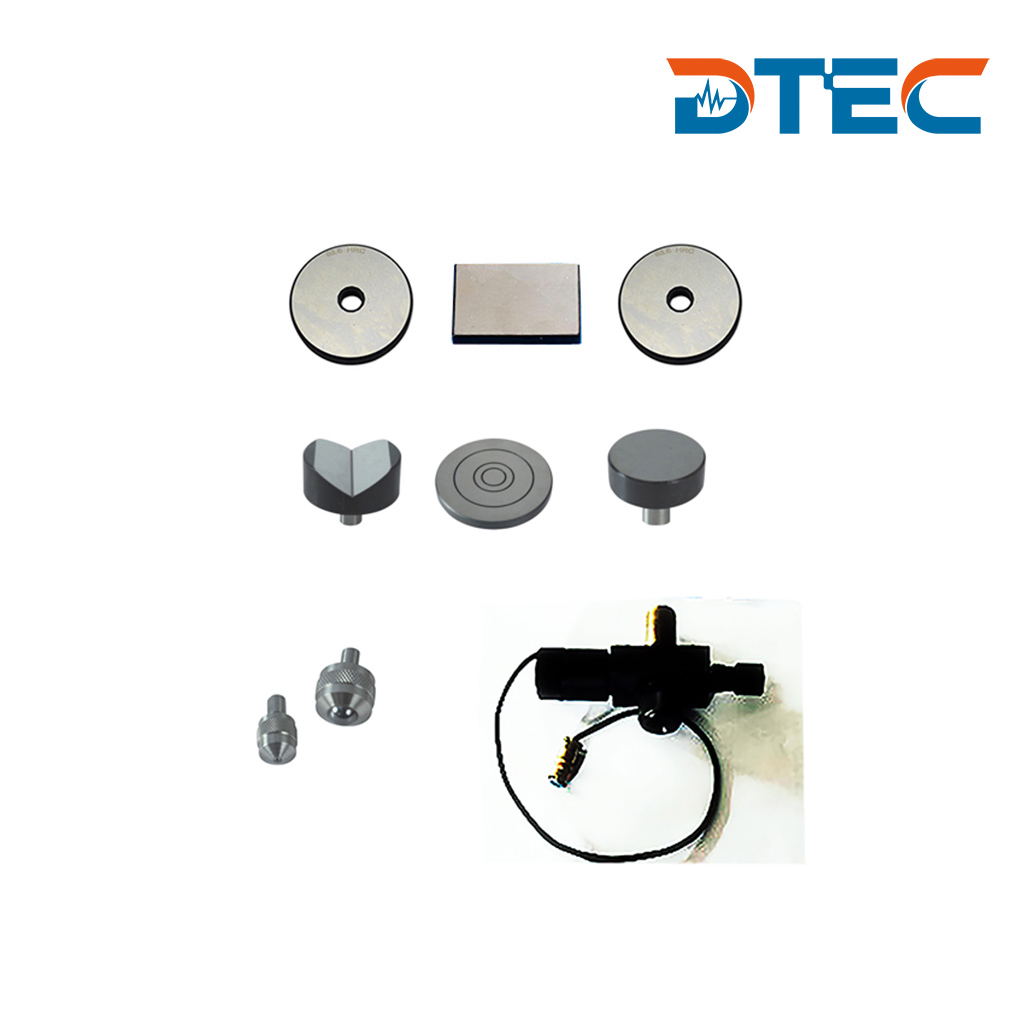

Standard Packing Accessories:

Items	Qty.	Items	Qty.
Microscope	1 set	Dia.2.5,5,10mm alloy ball indentor	1 each
Standard Block	3	Big,Medium,V type Testing Platform	1 each
Power Cable	1	Quality Certificate,Manual Book	1 each
