Product : Digital Rockwell Hardness Tester
Model : HRS-150
Country of Origin : CHINA
Brand : DTEC
Quality Certified : GB/T230.1/2,ISO 6508-2,ASTM E18.
Delivery Time : 3 days
Packing Weight : 95KG
Dimension : 63x50x86cm(LxWxH)
Package Type : Maker's Standard Export Wooden Case
Courier : DHL/TNT/FedEx/UPS/EMS,Shipping Agent
Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union
 |
- Product Intro
- Feature
- Specification
- Packing List

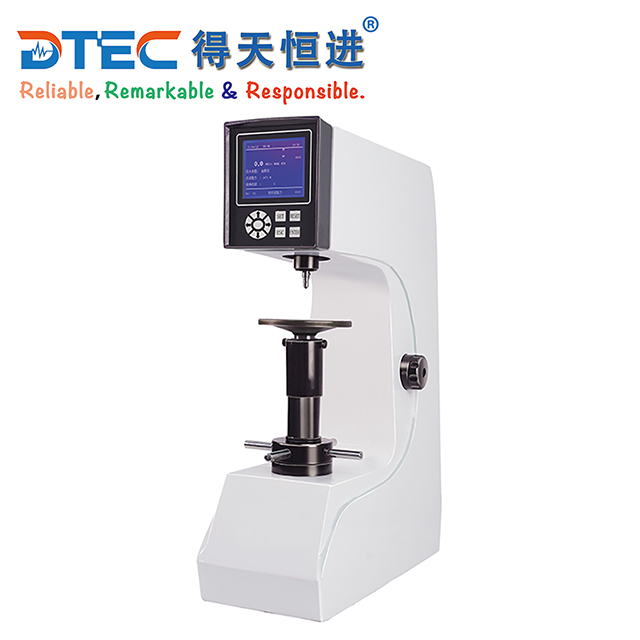

HRS-150 Digital Rockwell Hardness Tester is equipped with a newly-designed large LCD digital screen with good reliability which is easy read;besides,it comes with built-in mini printer,enable to printer the data out automatically;humanized operational menu satisfies you easy handing.It is selectable for rockwell scales and plastic rockwell scales by means of data processing software.
Using Scopes:
►Rockwell Hardness Testing of Ferrous Metal,Non-ferrous Metal.
►Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy,bearing steel, carburized steel sheet, etc.
Using Scopes:
►Rockwell Hardness Testing of Ferrous Metal,Non-ferrous Metal.
►Hardened and surface hardened steel, hardening and tempering steel, tempered steel, cold and hard casting parts, forging parts, hard alloy steel, aluminum alloy,bearing steel, carburized steel sheet, etc.
►Automatically loading,dwell,unloading,without man-made error,easy operation and durable test;
►Large LCD digital screen,easy reading;
►Equipped with inside printer,print out the testing data automatically;
►Automatically store,process and print out testing result;
►Automatically calculate and display hardness value,RS232 super terminal setting;
►Exchange different hardness values among hardness scales;
►Modify hardness value error through software editor,make it accurate for requirement;
►Automatically import data into PC,make customized testing report(Optional);
►Machine accuracy is in line with GB/T230.1/.2, ISO6508-2 and American standard ASTM E18.
►Large LCD digital screen,easy reading;
►Equipped with inside printer,print out the testing data automatically;
►Automatically store,process and print out testing result;
►Automatically calculate and display hardness value,RS232 super terminal setting;
►Exchange different hardness values among hardness scales;
►Modify hardness value error through software editor,make it accurate for requirement;
►Automatically import data into PC,make customized testing report(Optional);
►Machine accuracy is in line with GB/T230.1/.2, ISO6508-2 and American standard ASTM E18.
|
Model
|
HRS-150
|
|
Initial Testing Force |
10kgf(98.07N)
|
|
Testing Force |
60kgf(588N) 100kgf(980N) 150kgf(1471N)
|
|
Rockwell Scale |
HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK
|
|
Testing Range
|
HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:50-115 HRM:50-115 HRR:50-115 |
|
Reading Solution |
0.5HR
|
|
Carrier Standard |
GB/T230.1/.2 National Standard,ISO 6508-2,
ASTM E18
|
|
Exchange Scale |
Plastic Rockwell,Brinell,Vickers |
|
Data Display Mode |
LCD Digital Screen |
|
Data output |
Inside Printer RS-232 Port |
|
Max.Height of Specimen |
200mm
|
|
Max. Depth of specimens |
135mm
|
|
Power Supply
|
AC220V+5%,50~60Hz
|
|
Dimension(m)
|
61*48*80cm(L*W*H)
|
|
Packing Weight |
70KG
|

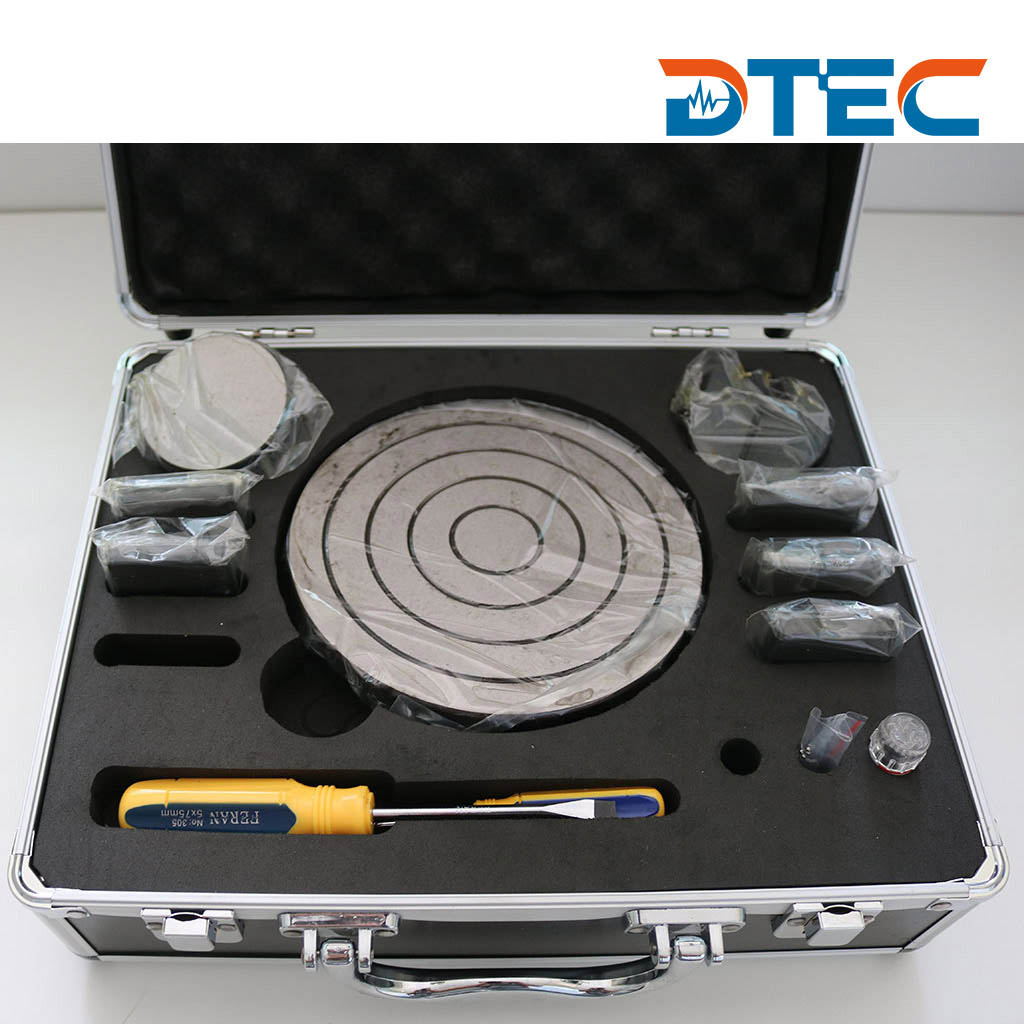

Standard Packing Accessories：
|
Items
|
Qty
|
Items
|
Qty
|
|
Diamond Rockwell Indentor
|
1
|
Dia.1/16'' ball indentor
|
1
|
|
Block （HRC high and low value 2pcs each、HRB 1pcs）
|
5
|
Big,Medium and V shaped Testing Platform
|
1 each
|
|
Weight（A、B、C）
|
1 each
|
Dustproof Cover
|
1
|
|
User’s Manual Book
|
1
|
Quality Certificate
|
1
|
