►Higher precision timing chip and V-Path calibration mode to guarantee a precision measurement of 0.001mm/0.0001imch;

►Suitable for various materials not only metallic steel, cast iron,alumnum,copper, but also non-metallic, plastic ceramic,glass,glass fiber and so on;

►Five types of selectable probes with 3 adjustable gain levels to meet different measuring conditions;

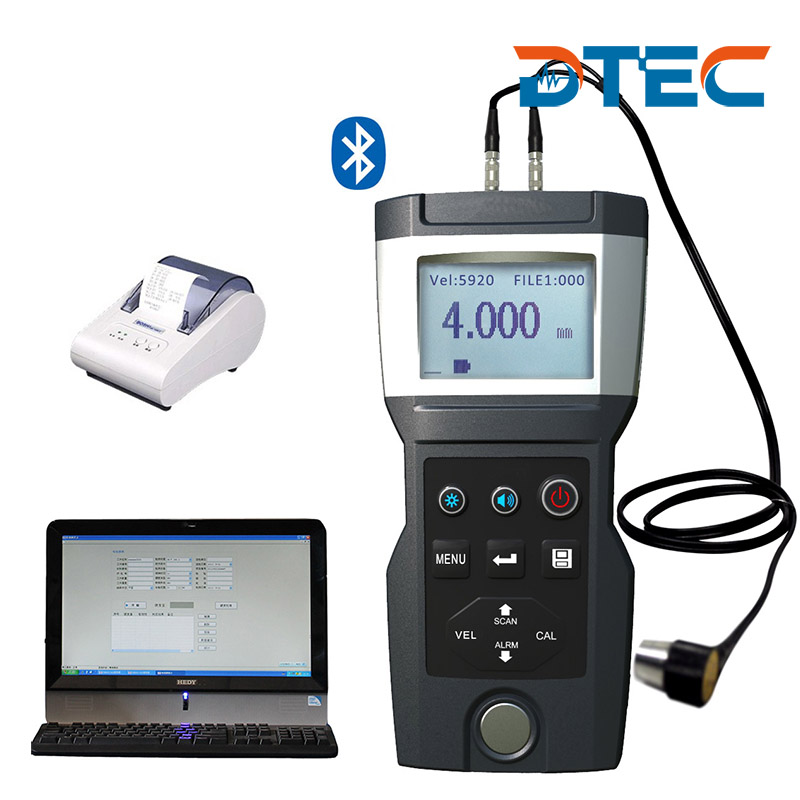

►Equip with built-in blue tooth module and come with bluetooth & mini-USB interface,can communication with PC and smartphone with or without cable;

►Standard host software is upgradable, supporting online measurement;

►Two Calibration modes-Zero Calibration and Two-Point Calibration can be used to automatically correct system error;

►Support many measurement modes, such as single point mode, scanning mode, differrential mode and alarm mode;

►Sound velocity can be measured by a known thickness sample workpiece;

►1000 groups of storage capacity, enable to completely store the thickness data and sound velocity information;

►Stability indicator for measuring status monitoring;

►Battery indicator for battery quantity monitoring.

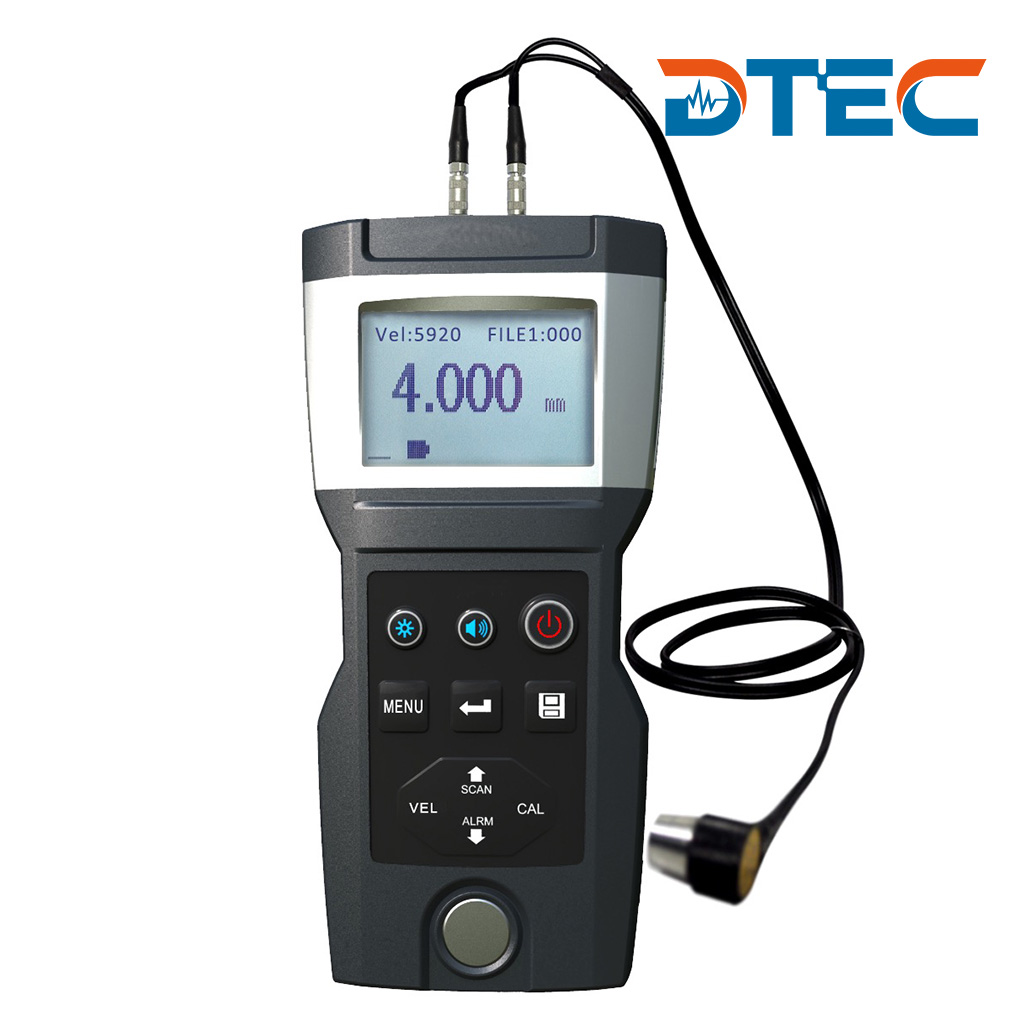

Model	DT500 (G5M-P10)
Probe Type	G5M-P10	G5M-P08	G2M-P12	G7M-P06	H3M-P12
Testing Range (in Steel)	0.8-300mm	0.8-300mm	2.0-400mm	0.75-40mm	3.0-100mm
Probe Diameter	10mm	8mm	12mm	6mm	12mm
Frequency	5MHz	5MHz	2MHz	7.5MHz	3MHz
Contact Temperature	-10-60℃	-10-60℃	-10-60℃	-10-60℃	-10-310℃
Min. Testing Diameter	Φ25x3 mm	Φ20x1.2 mm	Φ30x4 mm	Φ15x1.2mm	Φ25x3 mm
Accuracy	Thickness<10mm: ±0.03mm
	Thickness≥10mm: ±(0.3%*H) mm
Testing Alternation	4 times/sec
Resolution	0.001mm/0.0001inch
Sound Velocity Range	1-9999 m/s
Sound Velocity Measuring	Of known thickness can be measured Sound Velocity
Gain Adjustable	3 Level Gain Adjustable
Calibration Mode	Zero-point, Two-point

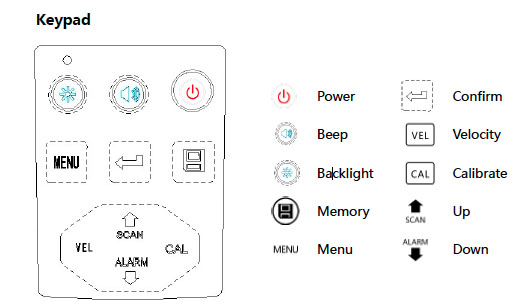

Displaying Mode	MENU Operate, English FSTN LCD Display with Backlight
Measuring Mode	One-point mode, Scan mode, Settable over-limit Alarm

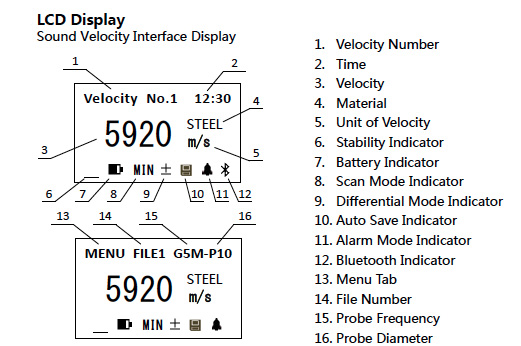

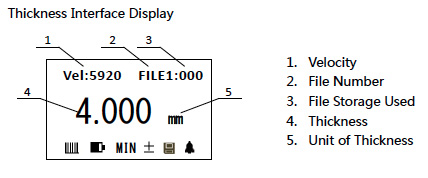

Displaying Content	Thickness/Sound Velocity/Coupling/Time/Battery/Alarming indicator/Differential indicator/scanning indicator/Storage/Bluetooth indicator, etc.
Storage	1000 Groups, including thickness value, sound velocity, etc.

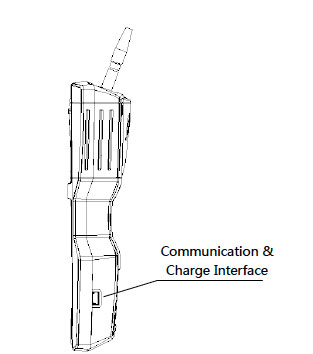

Communication	Blue Tooth & Mini-USB interface, virtual serial port protocol
PC Software	Standard upgradable software, support online measurement
Printer	Optional Bluetooth Mini-printer
Power Supply	1100mAh 3.7V Li-Ion chargeable battery
Working Condition	Usage:-10-50℃,Store:-30-60℃
Packing Weight	2.5KG
Dimension	36x25x14CM(LxWxH)

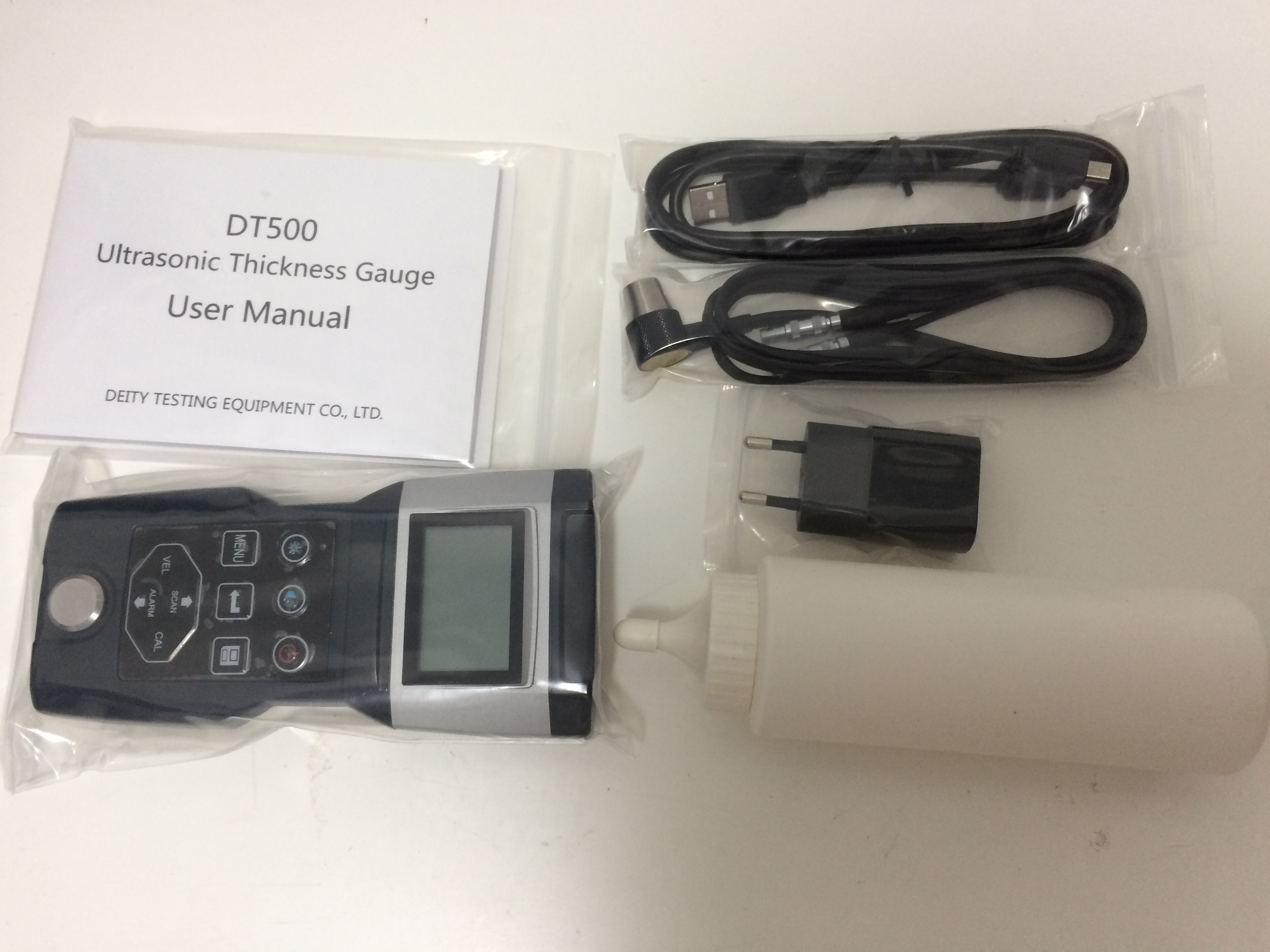

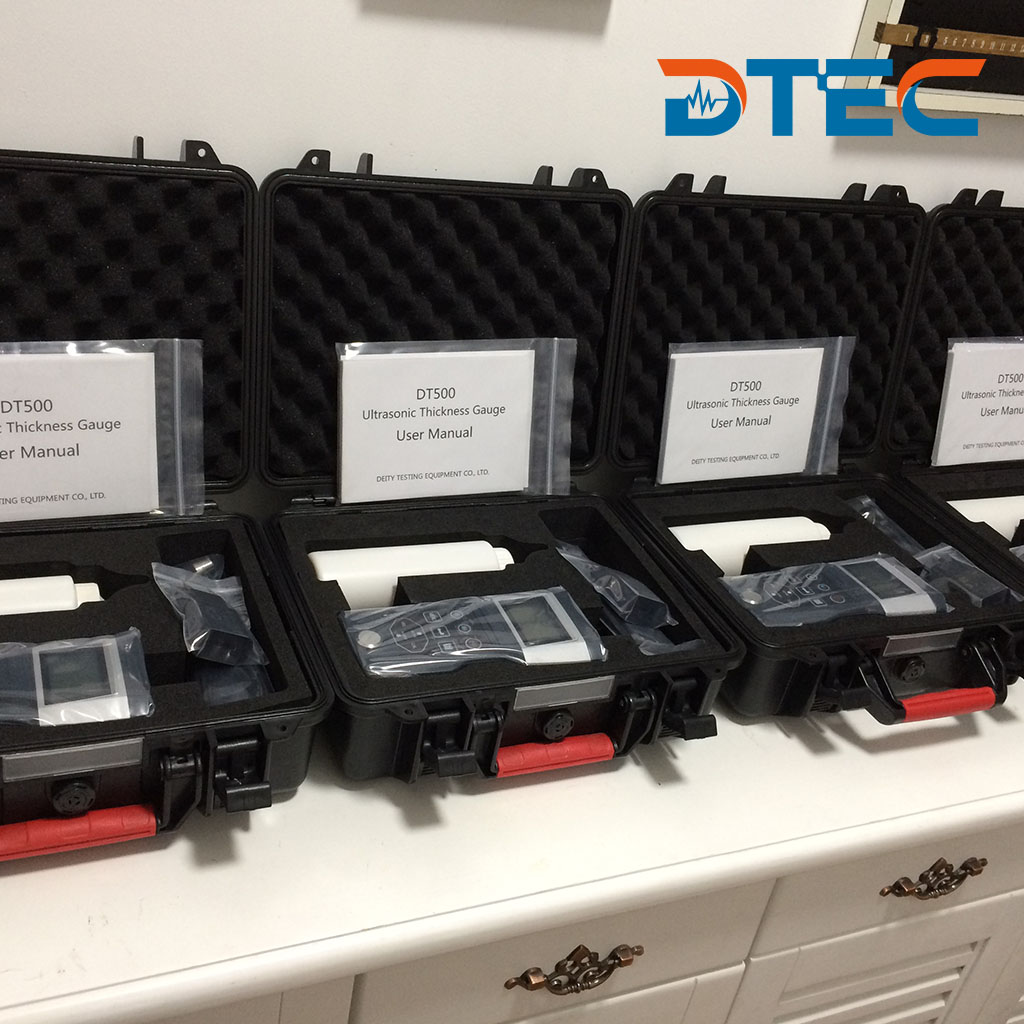

Standard Packing List

Items	Qty.
Main Unit	1 Pcs
G5M-P10 Standard Probe (5MHz Dia.10mm)	1 Pcs
Coupling jel	1 Pcs
Charger	1 Pcs
Communication Cable	1 Pcs
AA Battery	3 Pcs

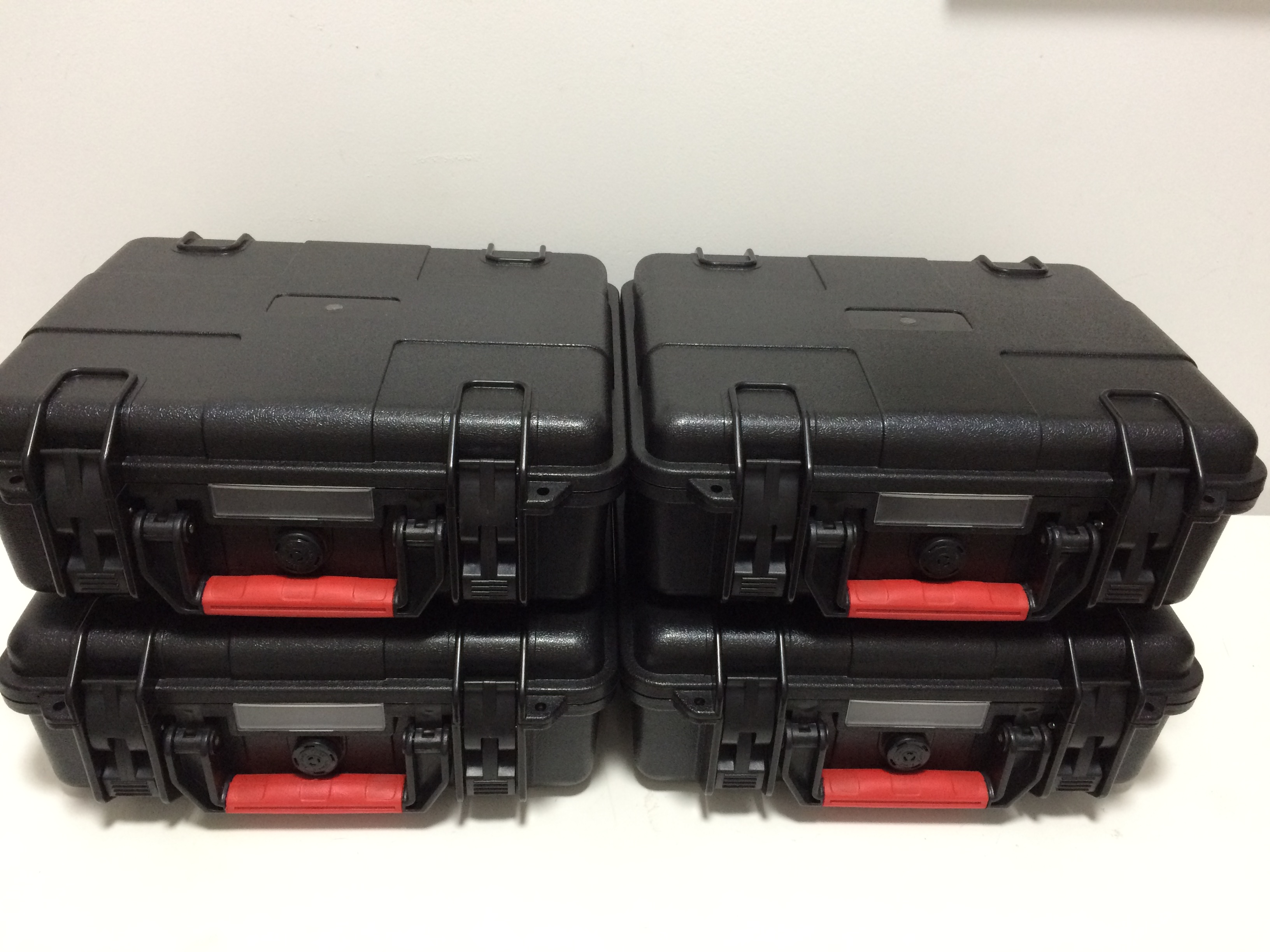

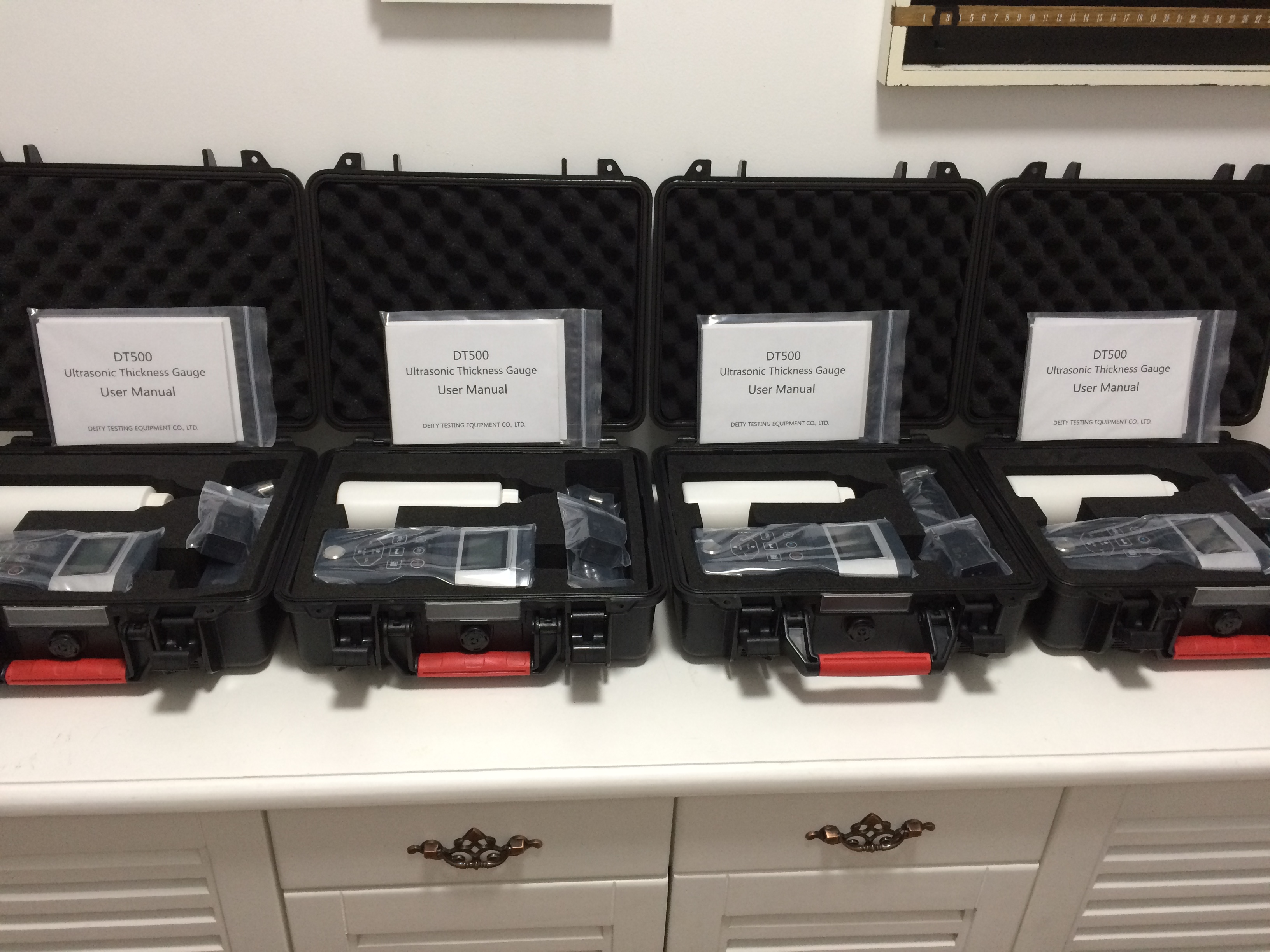

ABS Shock-proof Instrument Case	1 Pcs
Manual Book, Quality Certificate, Guarantee Card, Packing List	One Each
