Product : Colorful Screen Leeb Hardness Tester
Model : DH600
Country of Origin : CHINA
Brand : DTEC
Quality Certified : CE,GB/T 17394-1998, ASTM A956
Delivery Time : 3 days
Packing Weight : 6KG
Dimension : 38x30x12cm(LxWxH)
Package Type : Maker's Standard Export Carton
Courier : DHL/TNT/FedEx/UPS/EMS,Shipping Agent
Payment Term : TT100%/Private Bank Account/L/C/Paypal/Western Union
 |
- Product Intro
- Feature
- Specification
- Packing List

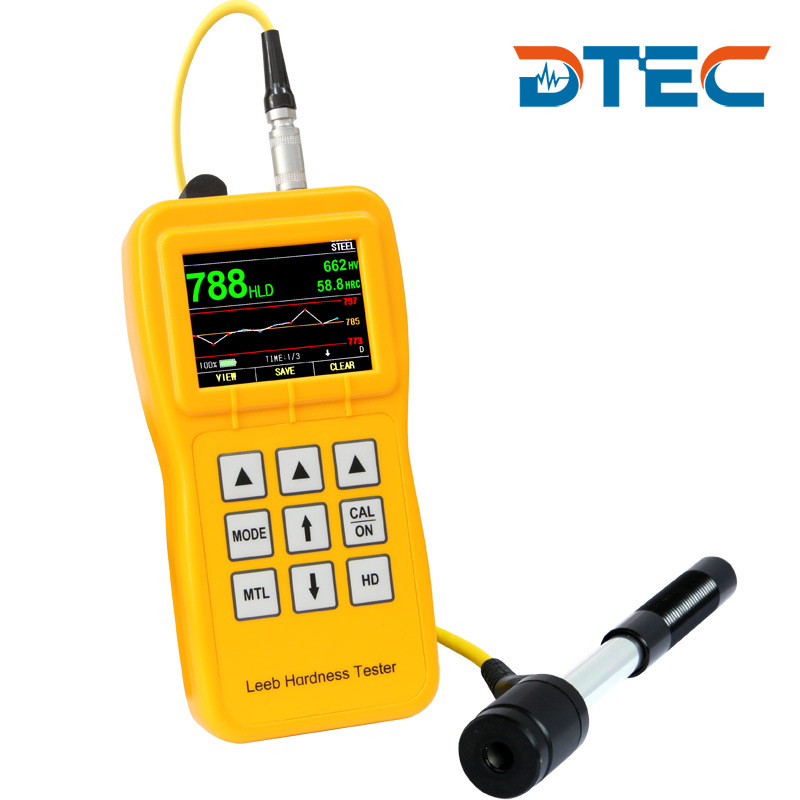

DH600 Colorful Screen Hardness Tester is a state-of-the-art model with colorful high-definition, 2.4inch QVGA(320*240 dot matrix) IPS Screen and mass storage; what’s more, it has an exclusive function of multi-scales display(display HRC,HV,HLD at the same time on the screen),function of intuitive display curve interface.
It is applicable to big workpieces on-site hardness testing and batch testing on the workpieces in production lines. Moreover, it is also used in metal manufacturing industry, transportation, power station, petrochemical industry, aircraft industry, construction, lab, etc.
Working Principle:
When the impact body,with a certain weight,impacts against the specimen surface under the action of spring force,leeb hardness comes from the ratio of the impacting velocity(VA) and the rebounding velocity(VB) of the impact body by the moment the spherical testing tip is located at 1mm point from specimen surface.
With principle of electromagnetism,the permanent magnet in the coil of impact device produced an induced voltage, which is in proportion to the impact body velocity.
The leeb hardness values are calculated by the following formula:
HL=1000X(Vb/Va)
Using Scopes:
Die cavity of molds.
Bearings and other parts.
Failure analysis of pressure vessel, steam generator and other equipment.
Heavy work piece.
The installed machinery and permanently assembled parts.
Testing surface of a small hollow space.
Material identification in the warehouse of metallic materials.
Rapid testing in large range and multi-measuring areas for large-scale work piece.
It is applicable to big workpieces on-site hardness testing and batch testing on the workpieces in production lines. Moreover, it is also used in metal manufacturing industry, transportation, power station, petrochemical industry, aircraft industry, construction, lab, etc.
Working Principle:
When the impact body,with a certain weight,impacts against the specimen surface under the action of spring force,leeb hardness comes from the ratio of the impacting velocity(VA) and the rebounding velocity(VB) of the impact body by the moment the spherical testing tip is located at 1mm point from specimen surface.
With principle of electromagnetism,the permanent magnet in the coil of impact device produced an induced voltage, which is in proportion to the impact body velocity.
The leeb hardness values are calculated by the following formula:
HL=1000X(Vb/Va)
Using Scopes:
Die cavity of molds.
Bearings and other parts.
Failure analysis of pressure vessel, steam generator and other equipment.
Heavy work piece.
The installed machinery and permanently assembled parts.
Testing surface of a small hollow space.
Material identification in the warehouse of metallic materials.
Rapid testing in large range and multi-measuring areas for large-scale work piece.
Cover all features and functions of traditional models:
►6 exchangeable hardness scales (HRB/HRC/HV/HB/HS/HL),measurable for the hardness strength σb;
►6 selectable impact devices(D/C/G/DC/DL/D+15) available for special usage, automatically identify the type of impact devices;
►8 kinds of material available, suitable to measure the hardness of all metallic materials.
Exclusive Features:

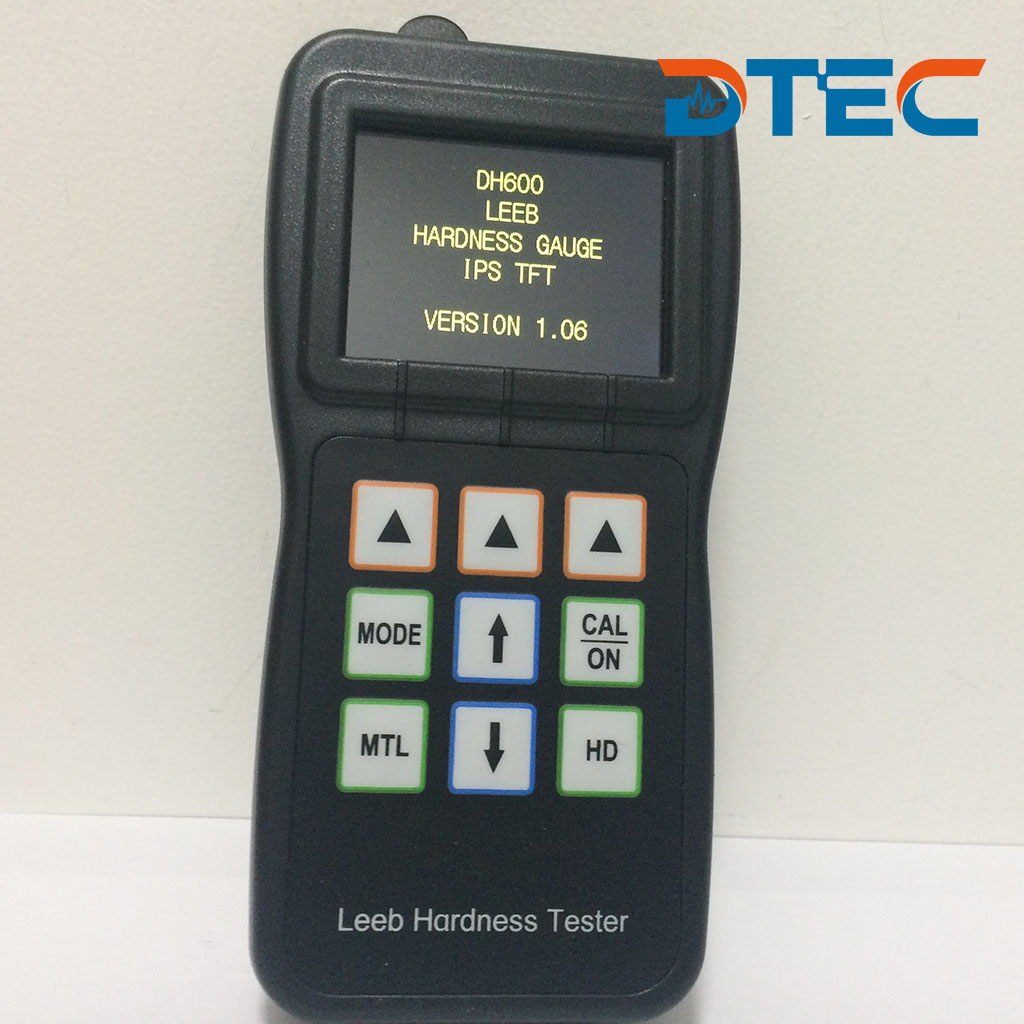

►Colorful Display: Colorful High-definition IPS Screen, with 2.4inch QVGA (320*240 dot matrix);
►Multilingual:Support many foreign language,including English,French,Italian,Japanese,etc.,can add other languages according to request;

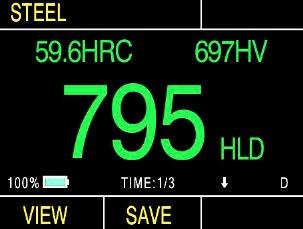

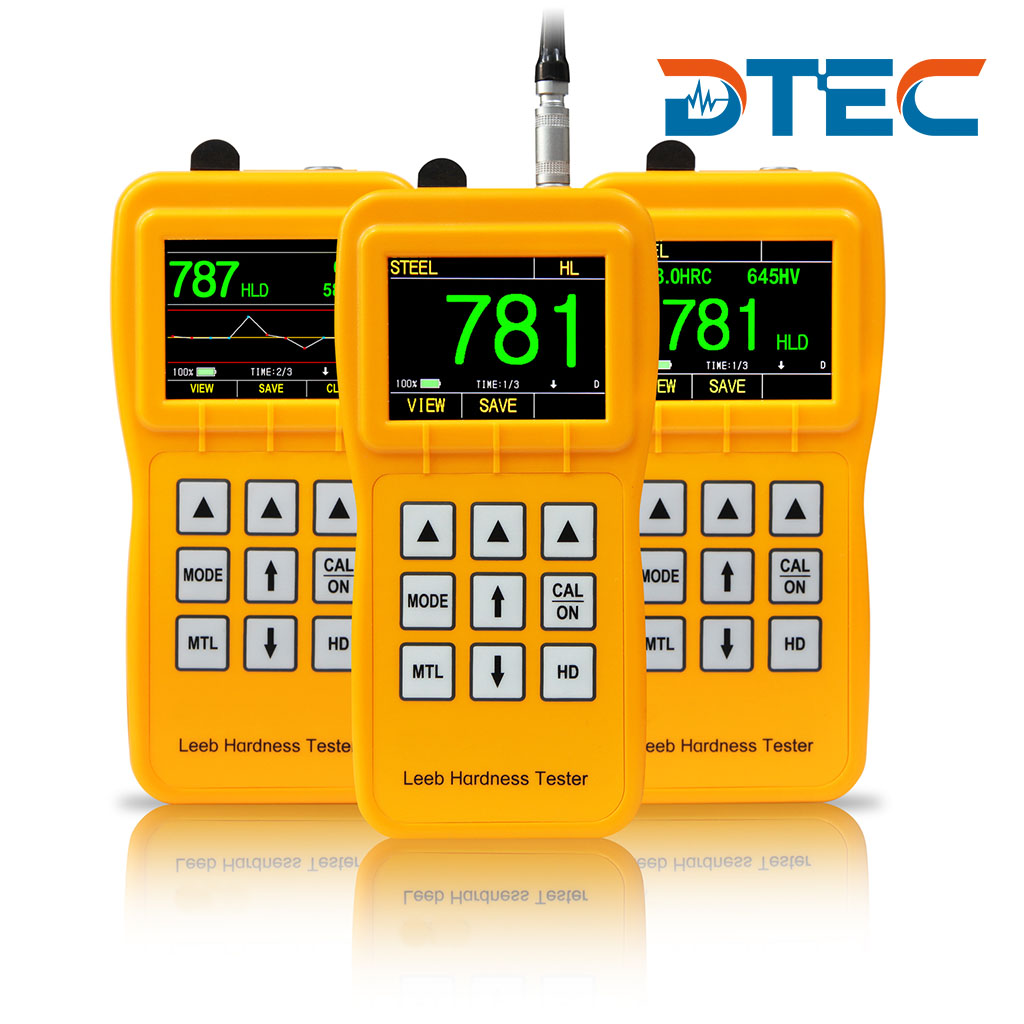

►Multi-Scales Displaying Interface: Simultaneously display three impact values for three different and frequently-used hardness scales-HRC,HV,HLD, meeting requirements of multi-scales displaying without conversion, which is more convenient for users;
►Intuitive Curve Displaying Interface: The intuitive curve is formed by the impact values for the latest ten times tests, which enables to have a better and clear observation to the uniformity of workpieces;
►Mass Storage, Intuitive Testing Results: Store up to 11000 groups of testing values, each group includes 1-8 impact values and one average value which shows three different hardness scales at the same time, besides the present group shows MAX and MIN values and maximal error, the storage data interface is so intuitive and easy to read that it brings much more convenient to the users on data analysis;
►Bond Font Displaying Interface: Testing Values display in large and clear Font, which brings you legible and striking reading feelings.
►6 exchangeable hardness scales (HRB/HRC/HV/HB/HS/HL),measurable for the hardness strength σb;
►6 selectable impact devices(D/C/G/DC/DL/D+15) available for special usage, automatically identify the type of impact devices;
►8 kinds of material available, suitable to measure the hardness of all metallic materials.
Exclusive Features:
►Colorful Display: Colorful High-definition IPS Screen, with 2.4inch QVGA (320*240 dot matrix);
►Multilingual:Support many foreign language,including English,French,Italian,Japanese,etc.,can add other languages according to request;
►Multi-Scales Displaying Interface: Simultaneously display three impact values for three different and frequently-used hardness scales-HRC,HV,HLD, meeting requirements of multi-scales displaying without conversion, which is more convenient for users;
►Intuitive Curve Displaying Interface: The intuitive curve is formed by the impact values for the latest ten times tests, which enables to have a better and clear observation to the uniformity of workpieces;
►Mass Storage, Intuitive Testing Results: Store up to 11000 groups of testing values, each group includes 1-8 impact values and one average value which shows three different hardness scales at the same time, besides the present group shows MAX and MIN values and maximal error, the storage data interface is so intuitive and easy to read that it brings much more convenient to the users on data analysis;
►Bond Font Displaying Interface: Testing Values display in large and clear Font, which brings you legible and striking reading feelings.
|
Testing Range
|
HLD(200-960),HRC(19.8-68.5), HRB(13.5-100), HB(30-651), HV(80-976), HS(26.4-99.5), σb (375-2639). |
|
Hardness Scale
|
HL, HB, HRB, HRC, HV, HS, σb.
|
|
Impact Device
|
Standard Type: D, Optional Type: C/G/DC/DL/D+15
|
|
Accuracy
|
±6HLD (HLD=800), Repeatability: <10HLD (HLD=800)
|
|
Resolution
|
1HL, 1HV, 1HB, 0.1HRB, 0.1HRC, 0.1HS |
|
Testing Direction
|
Vertically Downwards, Downward Sloping, Horizontal, Upwardly Sloping, Vertically Upwards |
|
Display
|
Colorfully High-definition 2.4inch QVGA:320*240 dot matrix, IPS Screen |
|
Available Material
|
Steel& Cast Steel, Stainless Steel, GC iron, NC iron, Cast Aluminum alloy, Copper-zinc alloy, Copper-tin alloy, Brass. |
|
Storage
|
200 Files,11000 Groups(each group includes 1-8 testing results and 1 average value) |
|
Communication
|
Standard USB Port
|
|
Data Pro Software
|
Standard LmView Software, enable to data admin,store,print,etc. |
|
Working Temp.
|
-10°C—+50°C
|
|
Power Supply
|
2 AA Batteries
|
|
Dimension
|
37x30x12cm (LxWxH)
|
|
Packing Weight
|
About 6.0 KG
|
|
Quality Standard
|
GB/T 17394-1998, ASTM A956
|
Error and Repeatability of Displayed Value:
|
No.
|
Type of impact device
|
Hardness value of Leeb standard hardness block |
Error of displayed value |
Repeatability
|
|
1
|
D
|
760±30HLD
530±40HLD
|
±6 HLD
±10 HLD
|
6 HLD
10 HLD
|
|
2
|
DC
|
760±30HLDC
530±40HLDC
|
±6 HLDC
±10 HLDC
|
6 HLD
10 HLD
|
|
3
|
DL
|
878±30HLDL
736±40HLDL
|
±12 HLDL
|
12 HLDL
|
|
4
|
D+15
|
766±30HLD+15
544±40HLD+15
|
±12 HLD+15
|
12 HLD+15
|
|
5
|
G
|
590±40HLG
500±40HLG
|
±12 HLG |
12 HLG |
|
6
|
E
|
725±30HLE
508±40HLE
|
±12 HLE |
12 HLE |
|
7
|
C
|
822±30HLC
590±40HLC
|
±12 HLC
|
12 HLC
|
Testing Range in Different Materials with Different Impact Devices:
|
Material
|
Method
|
Impact device
|
|||||
|
D/DC
|
D+15
|
C
|
G
|
E
|
DL
|
||
|
Steel and cast steel
|
HRC
|
20～68.5
|
19.3～67.9
|
20.0～69.5
|
|
22.4～70.7
|
20.6～68.2
|
|
HRB
|
38.4～99.6
|
|
|
47.7～99.9
|
|
37.0～99.9
|
|
|
HRA
|
59.1～85.8
|
|
|
|
61.7～88.0
|
|
|
|
HB
|
127～651
|
80～638
|
80～683
|
90～646
|
83～663
|
81～646
|
|
|
HV
|
83～976
|
80～937
|
80～996
|
|
84～1042
|
80～950
|
|
|
HS
|
32.2～99.5
|
33.3～99.3
|
31.8～102.1
|
|
35.8～102.6
|
30.6～96.8
|
|
|
Cold work
tool steel
|
HRC
|
20.4～67.1
|
19.8～68.2
|
20.7～68.2
|
|
22.6～70.2
|
|
|
HV
|
80～898
|
80～935
|
100～941
|
|
82～1009
|
|
|
|
Stainless steel
|
HRB
|
46.5～101.7
|
|
|
|
|
|
|
HB
|
85～655
|
|
|
|
|
|
|
|
HV
|
85～802
|
|
|
|
|
|
|
|
Grey cast iron
|
HRC
|
|
|
|
|
|
|
|
HB
|
93～334
|
|
|
92～326
|
|
|
|
|
HV
|
|
|
|
|
|
|
|
|
Nodular cast iron
|
HRC
|
|
|
|
|
|
|
|
HB
|
131～387
|
|
|
127～364
|
|
|
|
|
HV
|
|
|
|
|
|
|
|
|
Cast aluminum alloys
|
HB
|
19～164
|
|
23～210
|
32～168
|
|
|
|
HRB
|
23.8～84.6
|
|
22.7～85.0
|
23.8～85.5
|
|
|
|
|
BRASS(copper-zinc alloys)
|
HB
|
40～173
|
|
|
|
|
|
|
HRB
|
13.5～95.3
|
|
|
|
|
|
|
|
BRONZE(copper-aluminum/tin alloys)
|
HB
|
60～290
|
|
|
|
|
|
|
Wrought copper alloys
|
HB
|
45～315
|
|
|
|
|
|
Testing Parameter of Impact Devices:

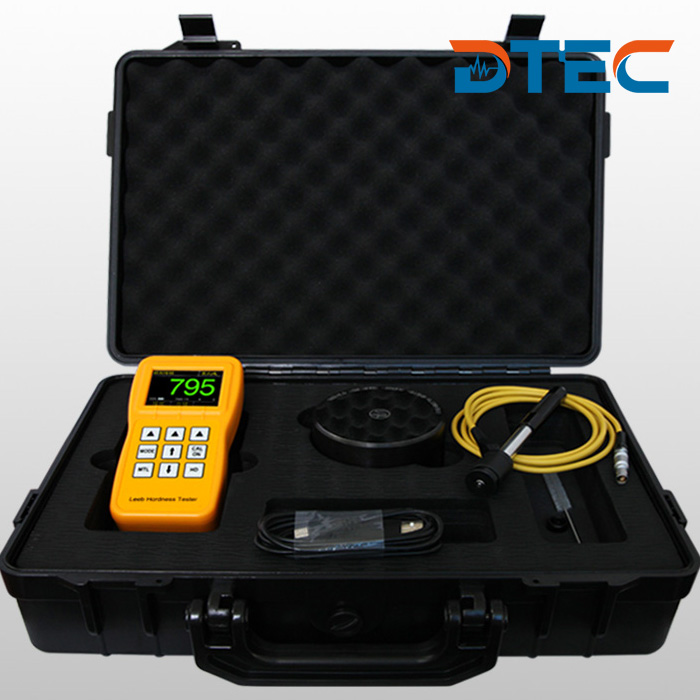

Standard Packing:
|
No.
|
Items
|
Qty.
|
|
1
|
DH600 Main Unit
|
1
|
|
2
|
D Type Impact Device
|
1
|
|
3
|
Standard Hardness Block
|
1
|
|
4
|
Cleaning Brush
|
1
|
|
5
|
Small Support Ring
|
1
|
|
6
|
2 AA Battery
|
1
|
|
7
|
Manual, Warranty Card, Quality Certificate |
1 each
|
|
8
|
Data Pro Software and USB Cable
|
1
|
|
9
|
Package Case
|
1
|
Optional Accessories:
Impact Devices(D/C/DC/DL/D+15/G)
3-Pin Cable for Impact Device (D/C/DC/DL/D+15/G), 1.5M in length
Impact Body (D/C/DC/DL/D+15/G)
Supporting Rings(12 pcs. each set)

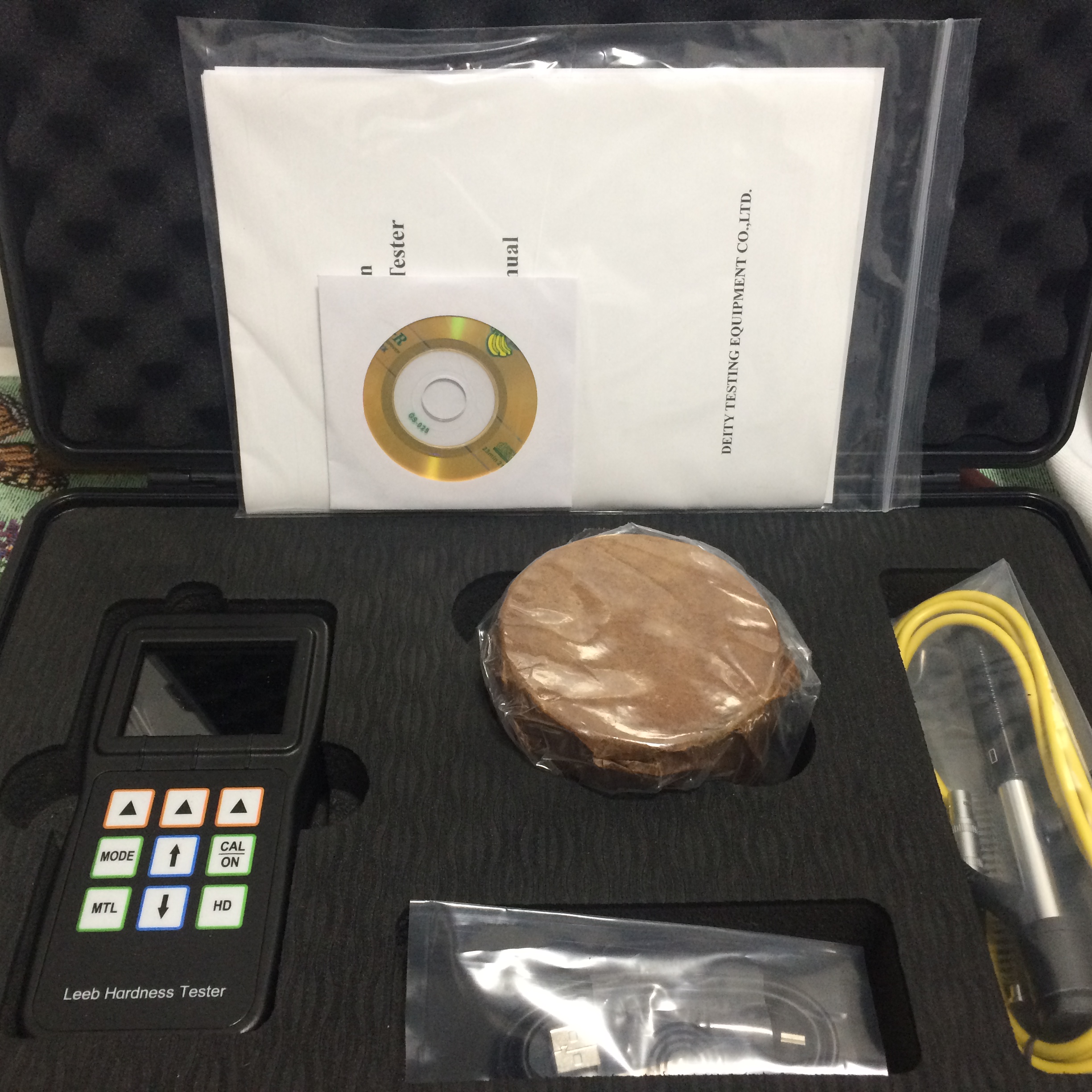

Specification of Supporting Rings:
Data Processing Software (including USB cable)
Standard Leeb Hardness Testing Block
|
No.
|
Items
|
Notes
|
|
1
|
Impact Device
|
(D/C/G/DC/DL/D+15)
|
|
2
|
Impact Body
|
For all Types: D/C/G/DC/DL/D+15
|
|
3
|
Cable for Impact Device
|
1.5M long,3-pin cable
|
|
4
|
Supporting Ring
|
Standard Type and Special Type, 12pcs/set |
|
5
|
Data Processing Software & USB Cable |
|
|
6
|
Standard Leeb Hardness Testing Block |
750-850HLD,590-670HLD,490-570HLD,550-630HLG，460-540HLG
|
|
7
|
Protective Rubber Sheath |
|
|
8
|
Belt
|
1.2 M Long
|
|
9
|
Instrument Case
|
35x28x10cm(LxWxH)
|
Impact Devices(D/C/DC/DL/D+15/G)
3-Pin Cable for Impact Device (D/C/DC/DL/D+15/G), 1.5M in length
Impact Body (D/C/DC/DL/D+15/G)
Supporting Rings(12 pcs. each set)
Specification of Supporting Rings:
Data Processing Software (including USB cable)
Standard Leeb Hardness Testing Block
|
Items
|
Size
|
Dimension
|
Product Picture
|
|
|
750-850HLD
|
Ф 90 × 55 mm |
  |
|
590-670HLD
|
|||
|
490-570HLD
|
|||
|
550-630HLG
|
Ф120 × 70 mm |
||
|
460-540HLG
|
|||
|
AA Grade Leeb Hardness Standard Block |
750-850HLD
|
Ф 90 × 55 mm |
  |
|
590-670HLD
|
|||
|
490-570HLD
|
|||
|
550-630HLG
|
Ф120 × 70 mm |
||
|
460-540HLG
|
