Producto : Normal UT Probe
Modelo : DP-U
 agrandar                   de nuevo
←[anterior]              [próximo]→


  • Introducción
  • Características
  • Especificaci
  • Embalaje
 All probe specification can be customized according to your requirement.

Plese do inform me the folowing information when you need UT probes:
1):Probe type(Angle Probe or Straight Probe);
2):Angle(40C,60C,70C or others);

3):Crystal Size(normal size:8x9mm);
4)Frequency(normal 2MHz,4MHz).

The probe price mainly depends on the crystal size.

And the frequecy can be chosed by yourself in the range of 0.2MHz~10MHz. For other parameters like angle,we can provide the general angles such as 30°,45°,60°,70°,80°.

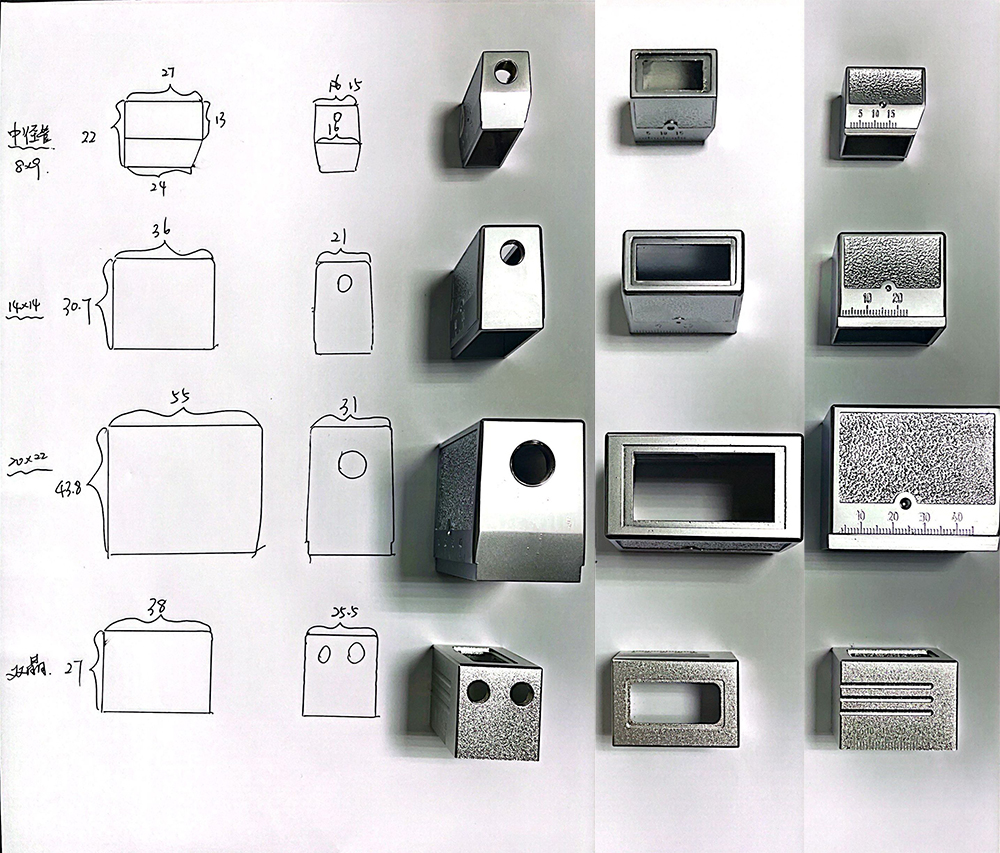

Crystal Size:
Common Size: 6x6, 8x9, 10x10, 13x13, 14x16, 18x18, 20x20, 20x22,22x22, 25x25,30x30 etc. Or can be made according to requirement. Both single and dual elements are available.


 All probe specification can be customized according to your requirement.

Plese do inform me the folowing information when you need UT probes:
1):Probe type(Angle Probe or Straight Probe);
2):Angle(40C,60C,70C or others);

3):Crystal Size(normal size:8x9mm);
4)Frequency(normal 2MHz,4MHz).

The probe price mainly depends on the crystal size.

And the frequecy can be chosed by yourself in the range of 0.2MHz~10MHz. For other parameters like angle,we can provide the general angles such as 30°,45°,60°,70°,80°.


Crystal Size:
Common Size: 6x6, 8x9, 10x10, 13x13, 14x16, 18x18, 20x20, 20x22,22x22, 25x25,30x30 etc. Or can be made according to requirement. Both single and dual elements are available.



Name
Ultrasonic Probe
Working Temperature
10-80 ℃
Crystal Size (mm)
Angle Beam Probe
Common Size: 6x6, 8x9, 10x10, 13x13, 14x16, 18x18, 20x20, 20x22,22x22, 25x25,30x30 etc. Or can be made according to requirement. Both single and dual elements are available
Straight Beam Probe(Softfilm)
Φ5,Φ8,Φ10,Φ12,Φ14,Φ16,Φ20,Φ25,Φ30,etc.
Or can be made according to requirement. Both single and dual elements are available
Immersion probe
Φ10,Φ14,Φ20,Φ25 etc.
Water filled probe
Φ20,Φ25 etc.
Small angle probe
Φ14,Φ20,Φ25 18x18 etc.
Plate wave probe
20x30
Creeping wave probe
8x12,6x6
Surface wave probe
10x12
Angle
0°,45°,60°,70°,80°.etc.
Frequency (MHz)
Common: 0.5MHz, 1MHz, 2.5MHz, 4MHz,etc.
Or can be made according to requirement.
Connecting Port
Single Crystal LEMO00 or LEMO01,BNC,Microdot(L5) etc.
Wave Modes
Shear Wave or Longitudinal Wave.
Housing Material
Stainless Steel, Copper
Crystal Material
PTZ or composite crystal
Packing Weight
50g-200g. Depends on Crystal Size
Dimension
Depends on Crystal Size
